How do I forward events and incidents from Entuity to BigPanda?

To create a 'Send to BigPanda' action

To forward incidents to BigPanda

To create a 'Send to BigPanda' action:

Note, you will only need to create a 'Send to BigPanda' action if you are using Entuity v19.0 and below. From Entuity v20.0 upwards, the 'Send to BigPanda' action is included as out of the box.

1. In the Main Menu, click Administration.
2. On the Administration page, click Events Administration.
3. On the Event Administration page, click the Actions tab.

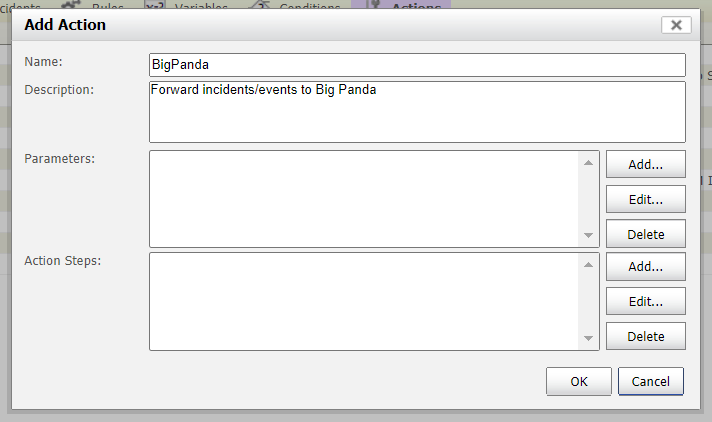

4. Click Add at the bottom of the window. This will open the Add Action window.
5. In the Name field, enter: Send to BigPanda
6. In Description, enter: Forward incidents/events to Big Panda

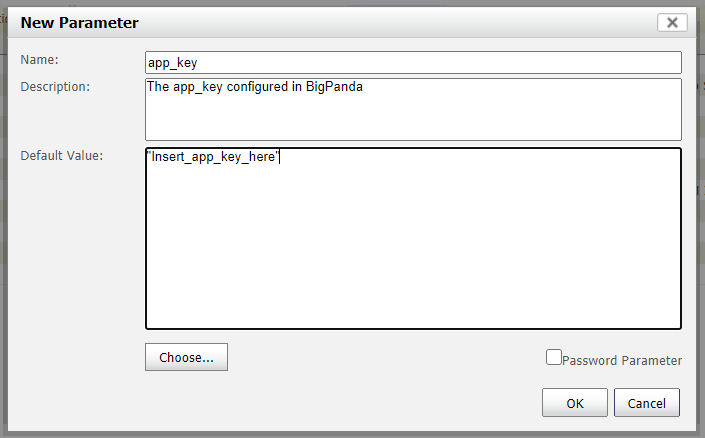

7. In the Parameters section, click Add. This will open the New Parameter window.
   1. In the Name field, enter: app_key
   2. In Description, enter: The app_key configured in BigPanda
   3. In Default Value, enter: "Insert_app_key_here"
      • Note, you must include the quotation marks in the Default Value field.
   4. Click OK to save the parameter.

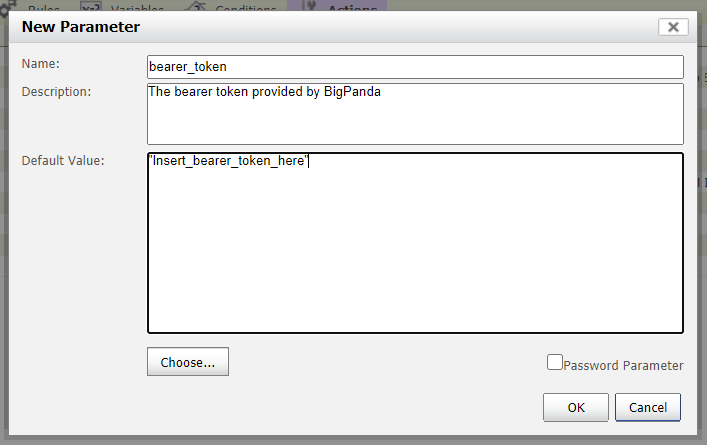

8. Add another New Parameter.
   1. In the Name field, enter: bearer_token
   2. In Description, enter: The bearer token provided by BigPanda
   3. In Default Value, enter: "Insert_bearer_token_here"
      • Note, you must include the quotation marks in the Default Value field.
   4. Click OK to save the parameter.

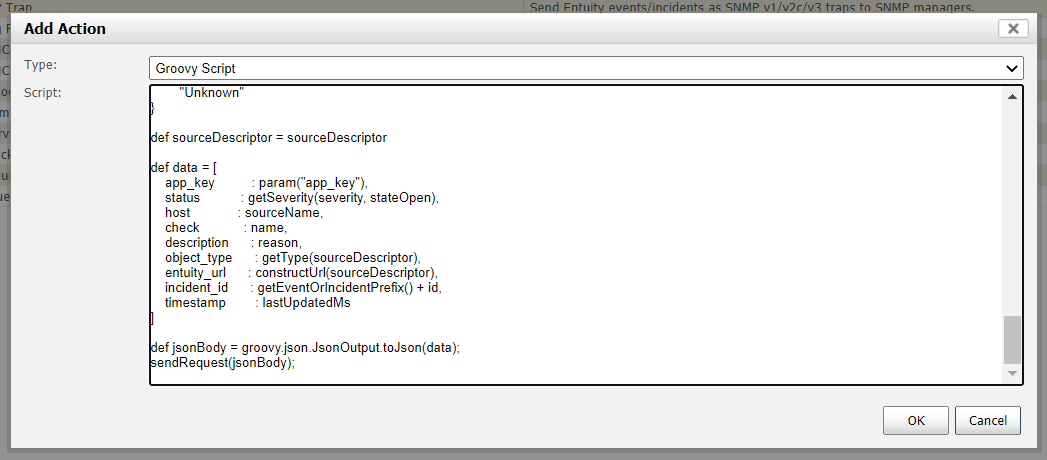

9. In the Action Steps section, click Add. This will open the Add Action window.
   1. In the Type dropdown field, select Groovy Script.
   2. In the Script field, enter the following:


      def getEventOrIncidentPrefix = {
      return (incident ? "i" : "e")
      }

      def constructUrl = { sourceDescriptor ->
      def url = "";

      def classicType = sourceDescriptor?.classicType
      def OBJ_TYPE_SYSTEM = com.entuity.events.event.ObjType.OBJ_TYPE_SYSTEM.toInt()
      def OBJ_TYPE_VIEW = com.entuity.events.event.ObjType.OBJ_TYPE_VIEW.toInt()

      if(classicType != OBJ_TYPE_VIEW) {

      def proto = getConfigProperty("server.ssl_enabled") == "true" ? "https" : "http"
      def swId = sourceDescriptor.swId;

      if (swId != null) {
      url = "${proto}://"

      def consolidationServerName = getConfigProperty("consolidation_server_name")
      def consolidationServerWebPort = getConfigProperty("consolidation_server_web_port")

      if (consolidationServerName) {
      if (consolidationServerWebPort) {
      url += "${consolidationServerName}:${consolidationServerWebPort}"
      } else {
      url += consolidationServerName
      }
      } else {
      url += shortHostname
      }
      if (classicType != OBJ_TYPE_SYSTEM) {
      url += "/webUI/main.do?url=/webUI/objectSummary.do%3Fserver%3D${sourceDescriptor?.eyeServerId}%26id%3D${swId}"
      } else {
      url += "/webUI/main.do?url=/webUI/viewEvents.do%3Fserver%3D${sourceDescriptor?.eyeServerId}%26view%3DMy%20Network"
      }
      }
      }
      return url.toString()
      }

      def getType = { sd ->
      def type = sd.classicType
      switch (type) {
      case 1 : return "Port"
      case 4 : return "Device"
      case 8 : return "VLAN"
      case 512 : return "Domain"
      case 1024 : return "Application"
      case 2048 : return "IP Address"
      case 4096 : return "System"
      case 8192 : return "View"
      case 2147483648 :
      case -2147483648 : return "StormWorks"
      default : return ""
      }
      }

      def sendRequest = { data ->
      logger.info("Forwarding event data to Big Panda");
      logger.info("Data to be sent: " + data);

      def urlString = "https://api.bigpanda.io/data/v2/alerts"

      def url = new URL(urlString);
      def connection = url.openConnection();
      connection.setRequestMethod("POST");
      connection.doOutput = true;

      def writer = new OutputStreamWriter(connection.outputStream);
      writer.write(data);
      writer.flush();
      writer.close();
      connection.connect();
      logger.info("Forward to Big Panda response code: " + connection.getResponseCode());
      }

      def getSeverity = { sev, state ->
      if(incident && !state) //if incident closed
      "Ok"
      else if(sev == 10 || sev == 8)
      "Critical"
      else if (sev == 6 || sev == 4 || sev == 2)
      "Warning"
      else if (sev == 0)
      "Ok"
      else
      "Unknown"
      }

      def sourceDescriptor = sourceDescriptor

      def data = [
      app_key : param("app_key"),
      status : getSeverity(severity, stateOpen),
      host : sourceName,
      check : name,
      description : reason,
      object_type : getType(sourceDescriptor),
      entuity_url : constructUrl(sourceDescriptor),
      incident_id : getEventOrIncidentPrefix() + id,
      timestamp : lastUpdatedMs
      ]

      def jsonBody = groovy.json.JsonOutput.toJson(data);
      sendRequest(jsonBody);





   3. Click OK to save the Action.

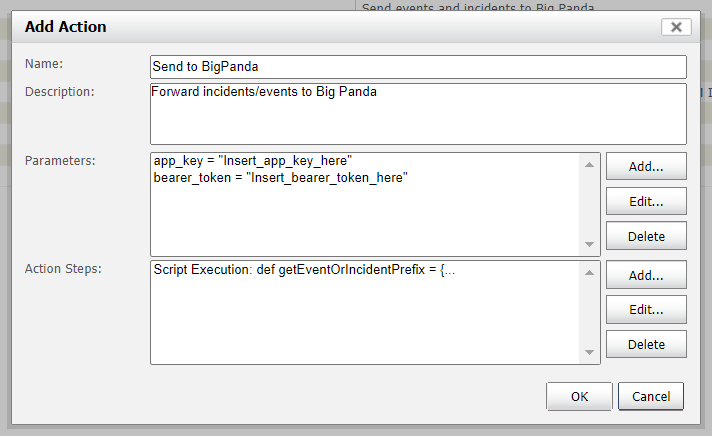

10. Your action will now look like the following:




11. Click OK.

To forward incidents to BigPanda:

1. In the Main Menu, click Administration.
2. On the Administration page, click Events Administration.
3. On the Events Administration page, click the Incidents tab.
4. Click Edit Global Triggers at the bottom of the browser.

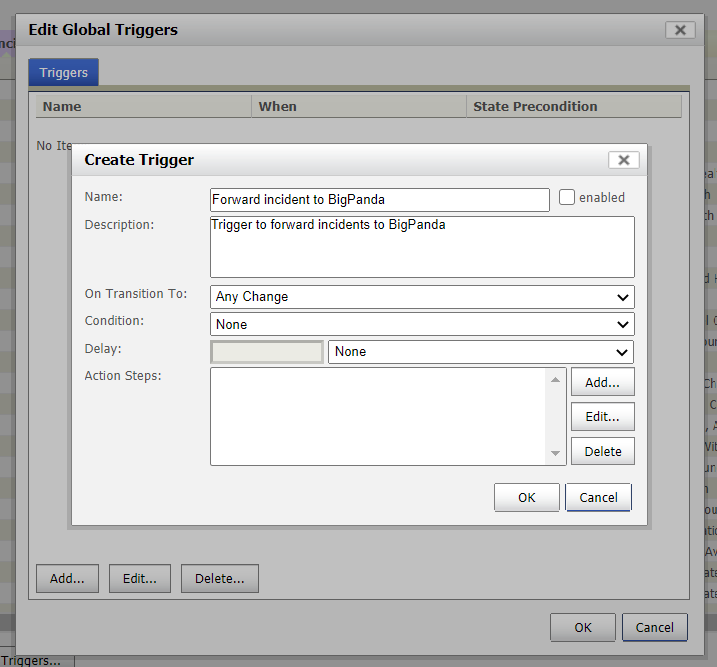

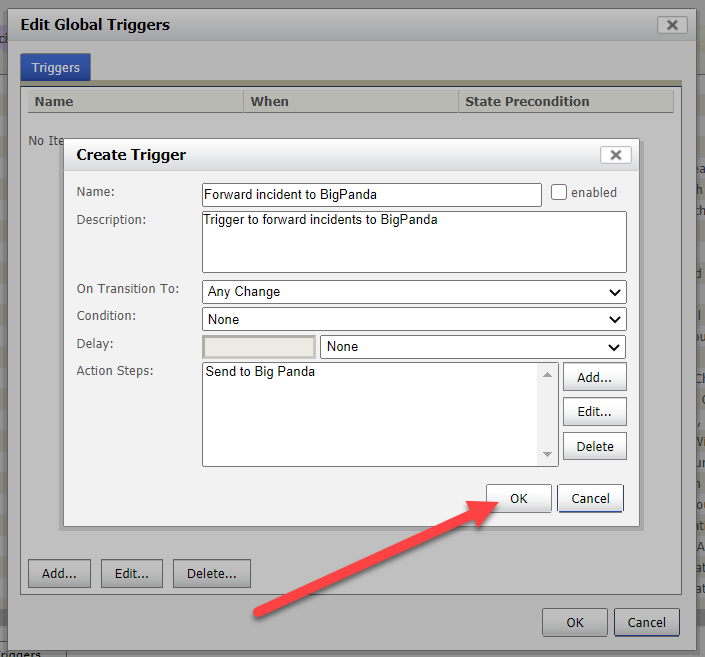

5. In the Edit Global Triggers window, click Add. This will open the Create Trigger window.
6. Enter the following details in the fields:




   1. Name: Forward incident to BigPanda
   2. Description: Trigger to forward incidents to BigPanda
   3. On transition to: Any Change
   4. Condition: None
   5. Delay: None

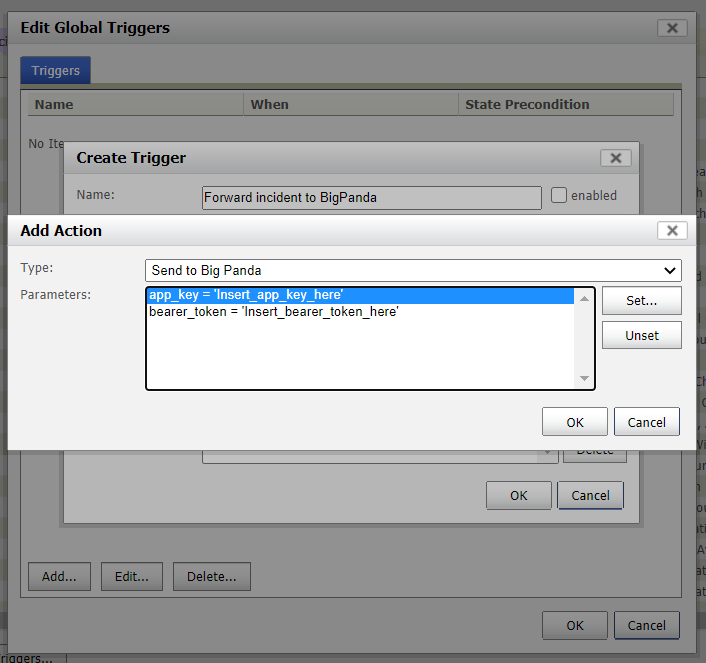

   6. Action Steps: click Add to open the Add Action window. Enter the following details in the fields:
      1. Type: Send to Big Panda

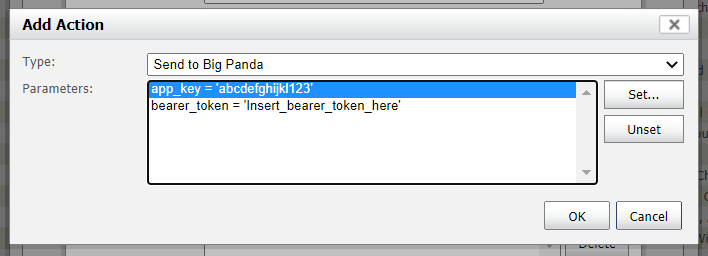

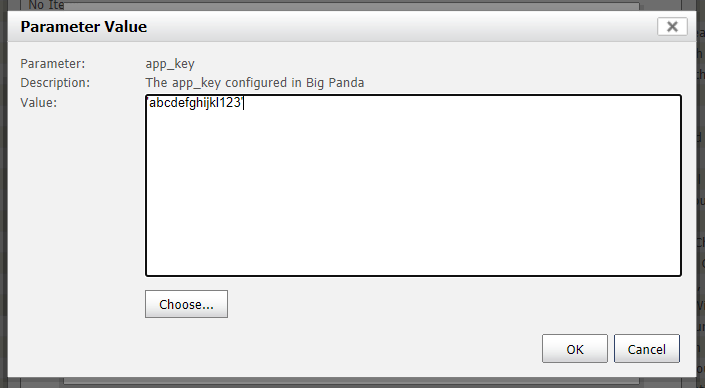

      2. Parameters: select 'app_key' and click Set to open the Parameter Value window. Enter the app_key you configured in BigPanda. This must be contained in quotes.






      3. Click OK to save the action step.




   7. Tick the enabled box in the top right of the Create Trigger window.




   8. Click OK to save the Trigger.




7. Save and deploy the Event Project.
