How do I create a multi-server configuration (to add a remote server)?

To add a remote server

To delete a remote server

For an introduction to multi-server configuration in Entuity, see this article.

To add a remote server:

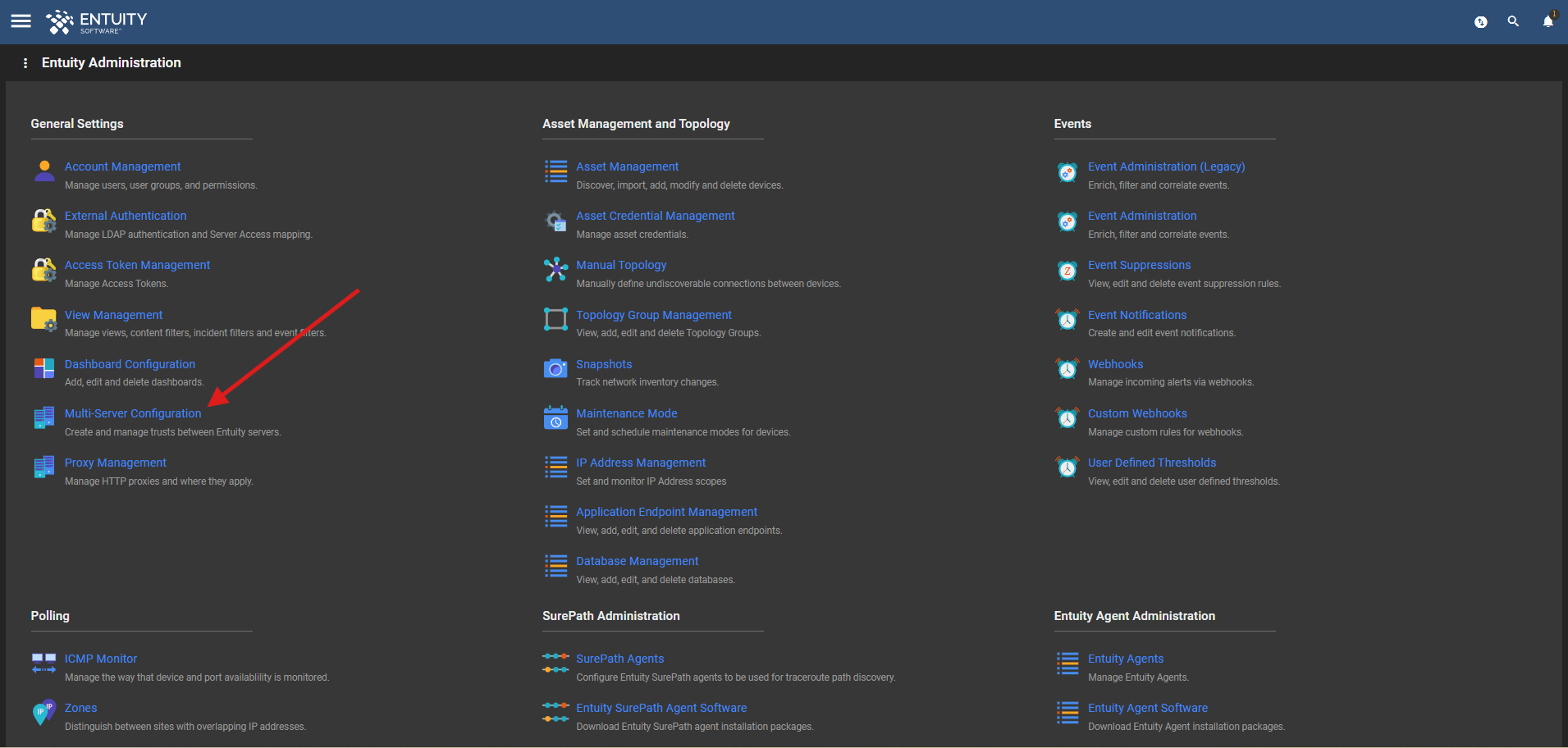

1. From the Main Menu, click Administration.
   The Entuity Administration page is displayed.
2. In the General Settings section of the page, click Multi-Server Configuration.



3. On the Multi-Server Configuration page that is displayed, click the Remote Servers tab.

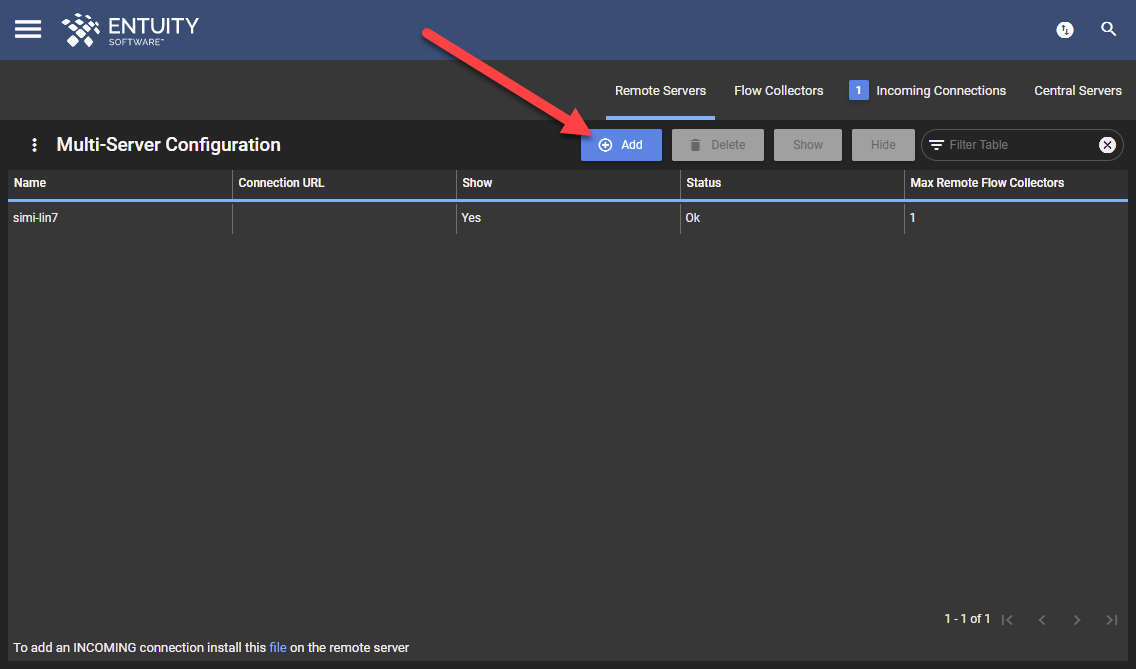

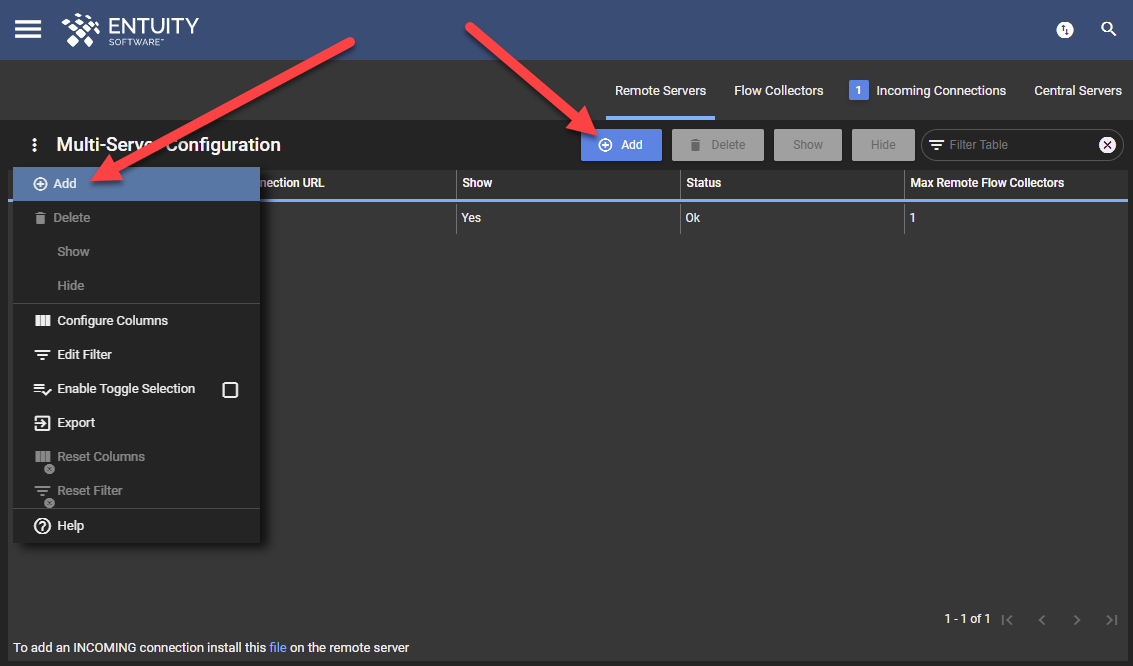

4. Click Add at the top of the page, or from the Overflow Menu.

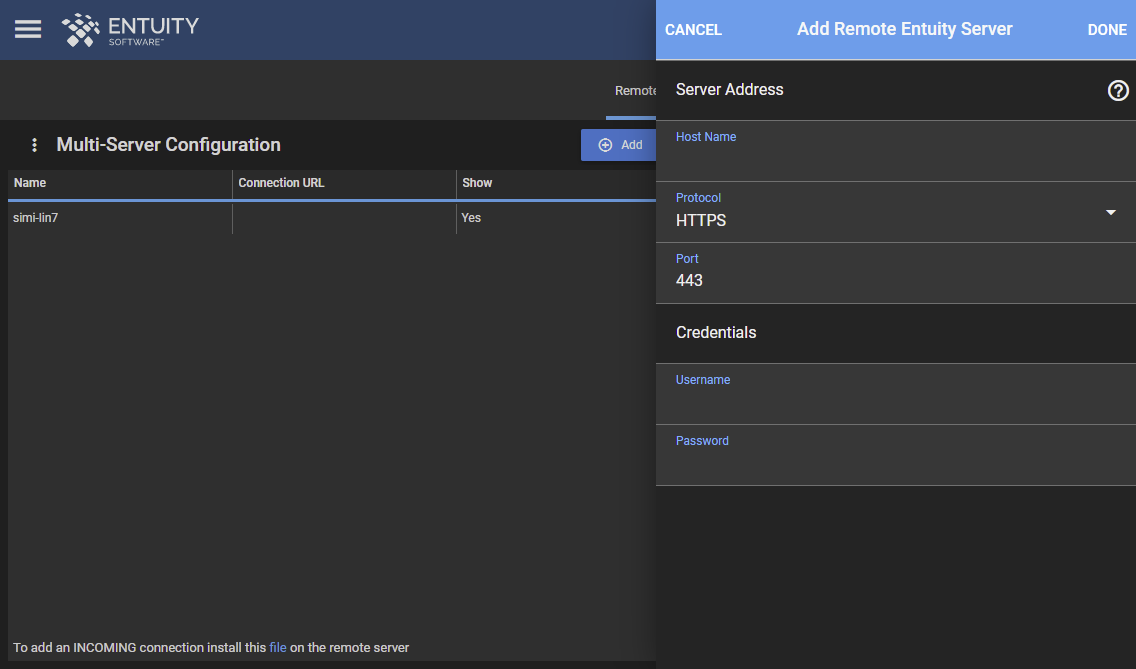

   The Add Remote Entuity Server form is displayed.




5. Specify the host name or IP address of the remote server you are adding in the Host Name field.
6. Specify the Protocol used by the remote server.
   Note, if you have specified HTTPS, you can edit the encryption type used for communications encryption between servers via the Apache config file on the remote server. Entuity supports a range of encryption types, including AES128 and AES256.
7. Specify the Port to be used.
8. Enter a valid user account name and password belonging to the Administration group in the Username and Password fields.
9. Click Done to save your changes. Otherwise, click Cancel.
   If the submission is successful, you are returned to the Multi-Server Configuration page, and the flow collector(s) that you have added are now listed in the table on the Remote Servers tab.

To delete a remote server:

1. On the Remote Servers tab of the Multi-Server Configuration page, select the remote server you want to remove.
2. Click Delete at the top of the page (or from the Overflow Menu or right-click Context Menu).
3. At the confirmation window that is displayed, click Yes to confirm the deletion. Otherwise, click No.
