How do I view zones?

To view zones

To configure the columns in the table

The Zones page displays all of the zones on your network.

To view zones:

1. Go to the Main Menu and click Administration.

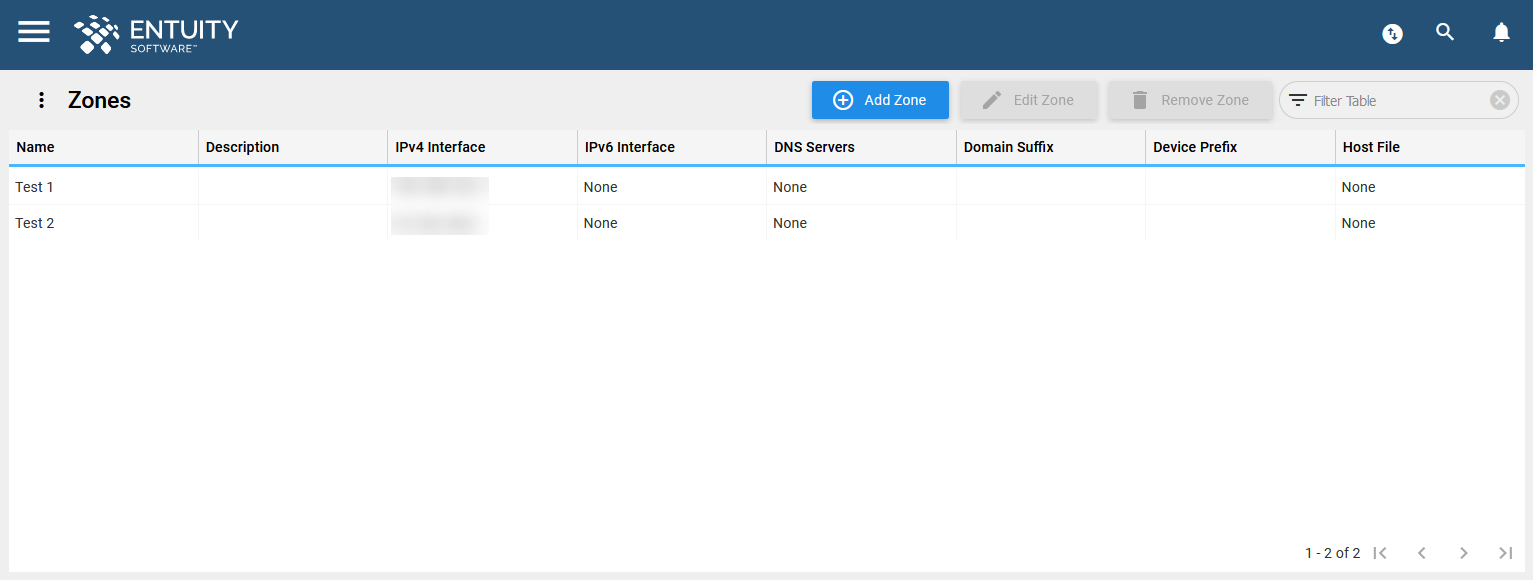

2. Click Zones. This will open the Zone Administration page, which has a table displaying details of the zones on your network.

To configure the columns in the table:

1. To sort the columns in ascending or descending order, click on the column heading of your choice.
2. You can also increase or decrease the width of columns by dragging the column dividers left and right.

1. The available columns are as follows:


   Column Name	Column Description
   Name	zone name.
   Description	description given to the zone.
   IPv4 Interface	IPv4 interface.
   IPv6 Interface	IPv6 interface.
   DNS Servers	DNS servers configured for the zone.
   Device Prefix	prefix that can be added to the name of each device in a zone.
   Host File	host file for the zone.
