How do I access the remote terminal and CLI for a managed device?

To access the remote terminal via a context menu

To access the CLI for the selected managed device

To copy and paste within the remote terminal window

To view terminal history in a separate window

You can access a remote terminal session for a managed device on your network. Entuity supports both SSH and Telnet remote terminal access. From Entuity v20.0 P02 upwards, you can remote terminal (SSH) into SD Controllers (e.g. Cisco DNAC and Cisco APIC).

From Entuity v21.0 upwards, you can specify behavior for the enter key via the radio buttons at the bottom of the window, choosing from CRLF (carriage return and line feed pair), CR (carriage return) or LF (line feed).

You can access a remote terminal session for a managed device on your network via the context menu of the selected device.

Note, a number of browsers (including Google Chrome and Microsoft Edge) will block the remote terminal from opening as a pop up. You may need to allow pop ups from Entuity on your browser settings.

To access the remote terminal via a context menu:

1. Navigate to the managed device for which you want to access the remote terminal.

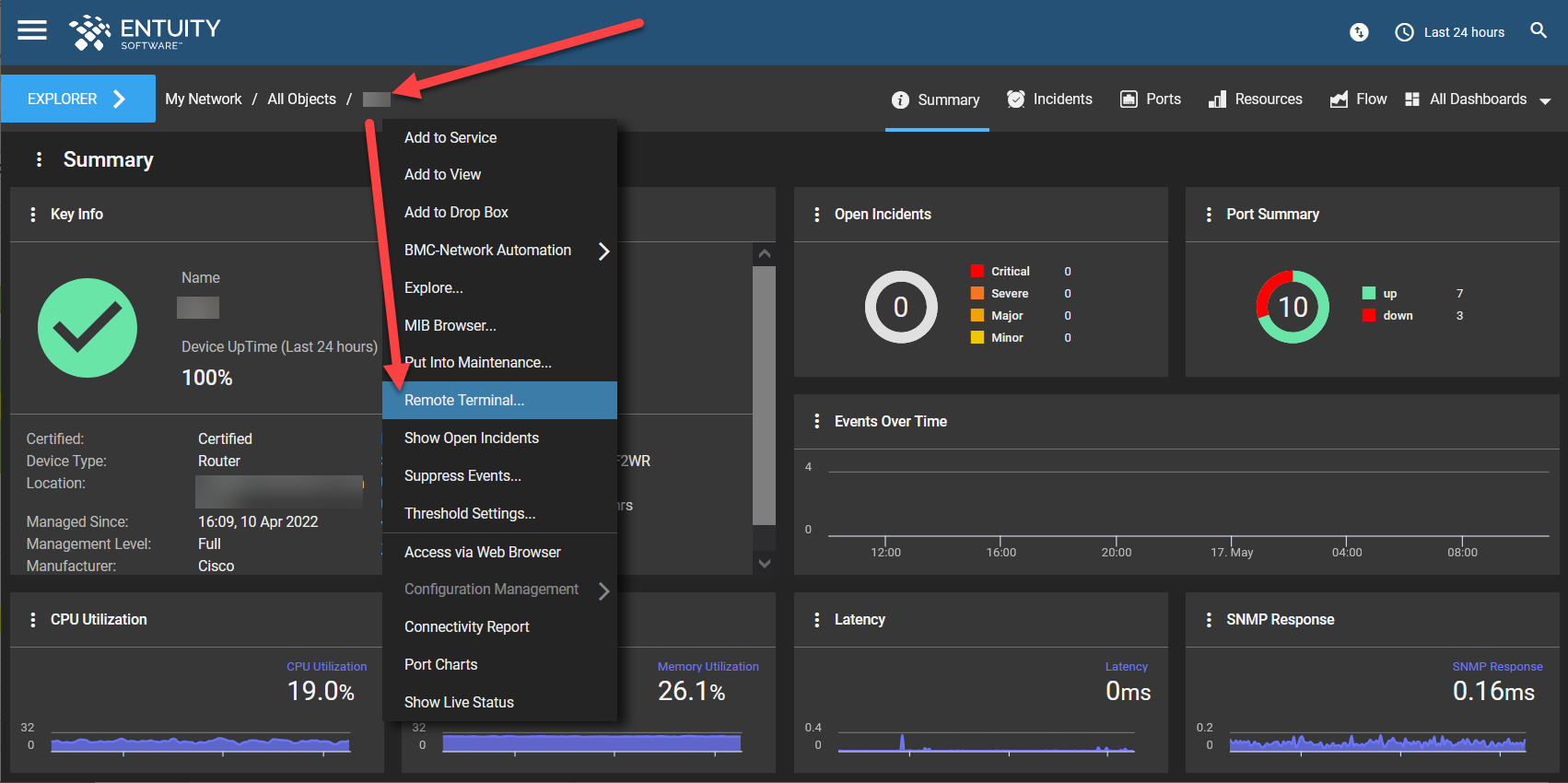

2. Right click on the managed device to open its context menu, and click Remote Terminal.




3. This will open the Remote Terminal page for the selected managed object in a new tab, where you can sign in to the device.

To access the CLI for the selected managed device:

1. On the remote terminal page, you will see the Remote Terminal window for the selected managed device.

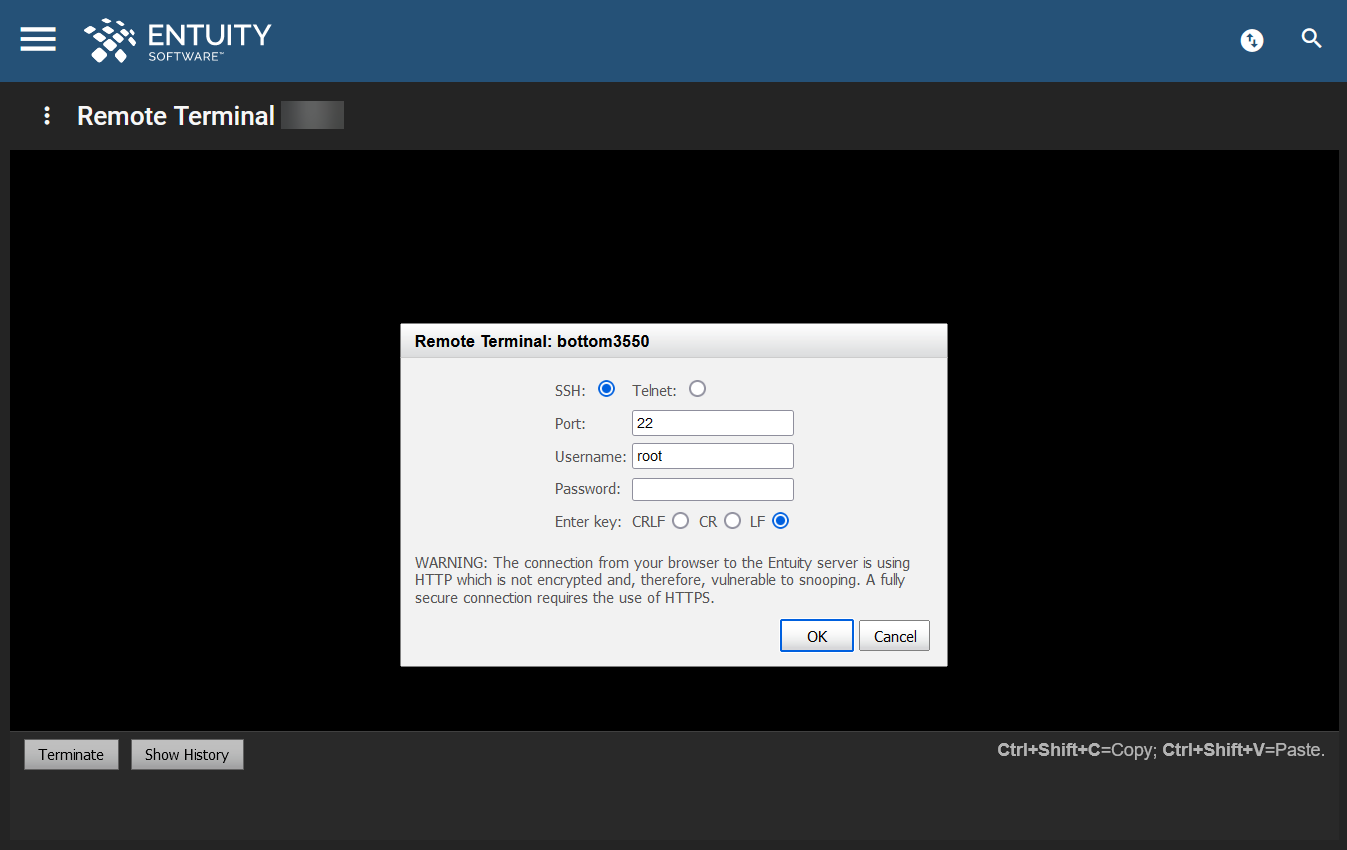

2. If SSH is selected, enter the login credentials for the device in the Username and Password fields. If Telnet is selected, you do not need to enter credentials. Click OK to proceed, otherwise click Cancel.
3. When you have entered the appropriate credentials, you will have access to the CLI for the managed device on the black screen.
4. To close the session, close the tab or click Terminate in the bottom left of the browser. A confirmation window will appear, click Yes to close or No to continue.

To copy and paste within the remote terminal window:

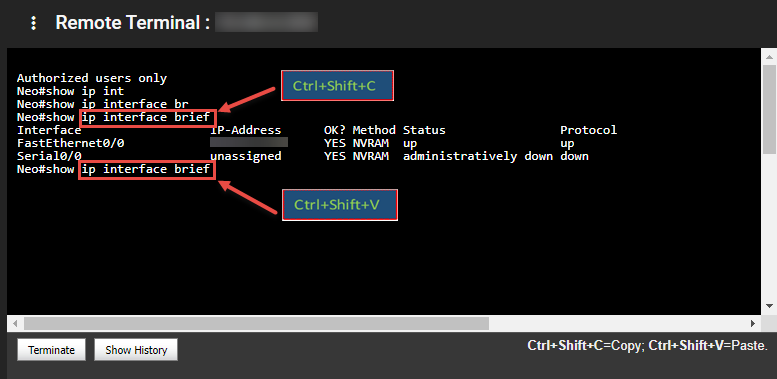

You can copy text from within the terminal window and paste the same text into the same terminal window, e.g.:

Note, to copy text from within the terminal to then paste outside the terminal, you need to click Show History and then copy from there.

You cannot copy text from outside the terminal and then paste it within the terminal.

To view terminal history in a separate window:

Through Entuity, you can view up to 30,000 lines of remote terminal history for a device.

1. Navigate to the remote terminal for the device you wish to look at via one of the methods described above.
2. Click Show History at the bottom of the window. This opens the Remote Terminal: <device> History window, which displays the device's terminal history.
