How do I use an incident trigger to send an email?

Introduction

To define an incident that triggers an email when raised

Example groovy scripts

Introduction:

In Entuity, you can define an incident that triggers an email when raised. This is useful when designing an event system with an inbuilt escalation process, e.g. to immediately email a senior network administrator if an incident of a specific severity is raised, or after a specified delay if the incident has open for a certain length of time.

For further help and information on triggers in Entuity, please see this article.

To define an incident that triggers an email when raised:

1. Click Main Menu and then Administration. This will open the Administration page.
2. Click Event Administration. This will open the Event Administration page.
3. Click the Variables tab and Add two variables that will be used with the email action:
   • a variable with the Name: email_boolean_send_control. This can contain one of two Values:
     • true when you want the email action with which it will be associated to run.
     • false when you want the email action with which it will be associated to not run.
   • a variable with the Name: email_network_admin. Set the Value to the email address of the recipient:
     • e.g. john.smith@entuity.com

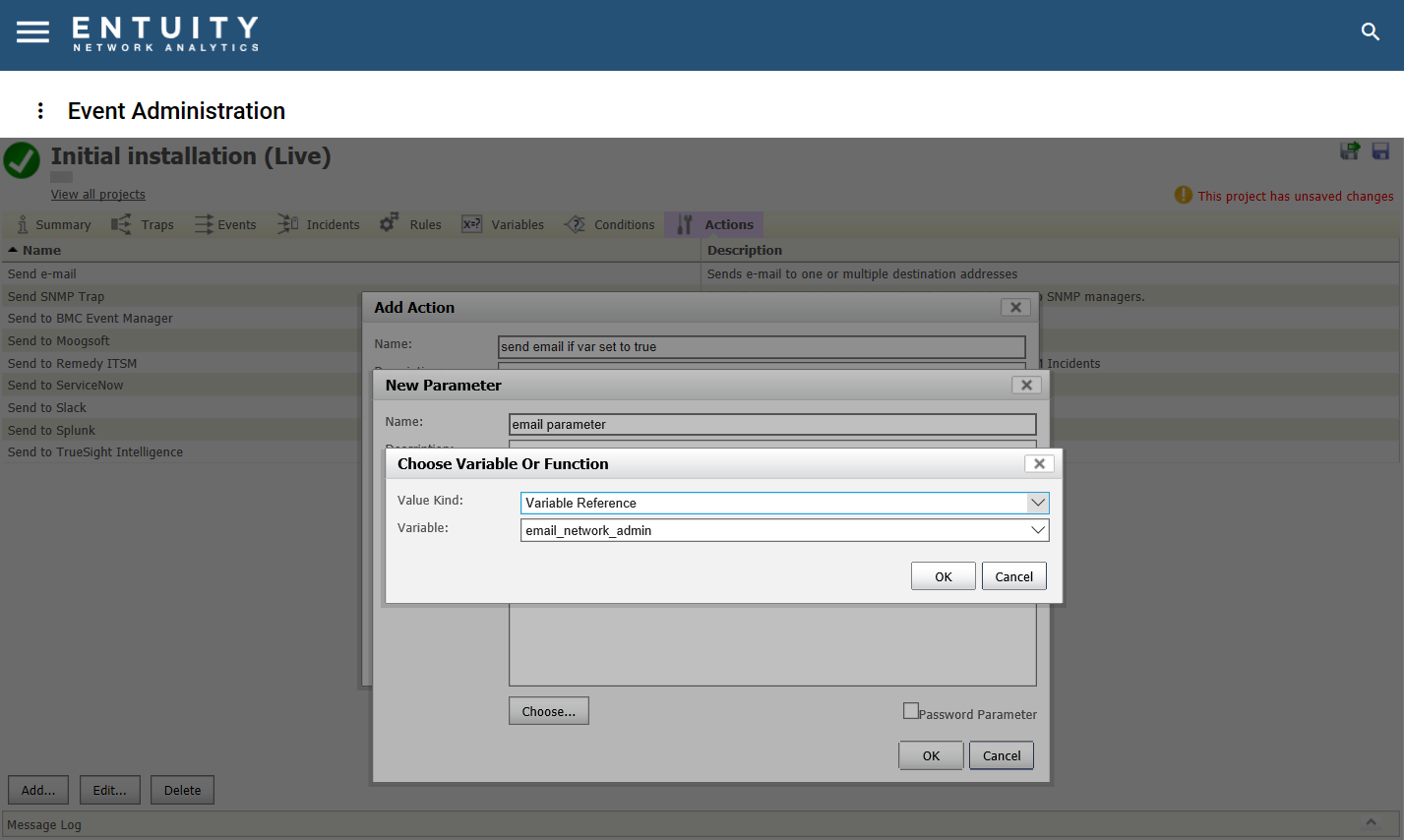

4. Click the Actions tab and Add a new event action.
   • enter an appropriate Name and Description.
   • Add a new email parameter.

     • click Choose, and for Value Kind select Variable Reference.
     • for Variable select email_network_admin.




   • Add the body of the email in a parameter. The following example includes all standard attributes available against events and incidents, with each attribute labelled and starting on its own line:


     "Source: " + source + "\nSourceName: " + sourceName + "\nSourceCompIdString: " + sourceCompIdString + "\nSourceExternalId: " + sourceExternalId + "\nContext:" + context + "\nType: " + type + "\nreportId: " +
     reportId + "\nReason: " + reason

   • Add the throttle parameter and set it to true.
   • Add an Action Step:
     • set the Type to Groovy Script.
     • enter the following example that tests if email_boolean_send_control is set true, and within the sendEmail section specifies the email content:


       if (var("email_boolean_send_control") == true ) {
       sendEmail (
       param('recipients'),
       param('subject'),
       param('body'),
       param('throttle')
       )
       }

5. Save the action. The action is now available as a Named Action that you can select when adding triggers to incidents.

Example groovy scripts:

The following example groovy scripts can be specifed as Actions Steps (see above).

Email subject:

def stateString = " ";
if(state == 1) {
stateString=" - OPEN"
} else if (state == 2) {
stateString=" - CLOSED"
}

"Entuity Alert - " + name + stateString + " on " + sourceName

Email body:

def severityString = " "
if(severity == 10) {
severityString="Critical"
} else if (severity == 8) {
severityString ="Severe"
} else if (severity == 6) {
severityString ="Major"
} else if (severity == 4) {
severityString ="Minor"
} else if (severity == 2) {
severityString ="Info"
}

def ipString =""
if (source) {
def ip=""
ip = source.devPolledIpAddr
if ((ip == null) && (source.device != null)) ip = source.device.devPolledIpAddr
if (ip != null) ipString = "\nPolled IP=" + ip
}

// Primary consolidation server - Compute a callback URL for the the object that is the source of the incident

def constructUrl = { sourceDescriptor ->
def url = "";
def classicType = sourceDescriptor?.classicType

if (source == null) return("") // System event/incident so no monitored component

def OBJ_TYPE_SYSTEM = com.entuity.events.event.ObjType.OBJ_TYPE_SYSTEM.toInt()
def OBJ_TYPE_VIEW = com.entuity.events.event.ObjType.OBJ_TYPE_VIEW.toInt()

if(classicType != OBJ_TYPE_VIEW) {
def proto = getConfigProperty("server.ssl_enabled") == "true" ? "https" : "http"
def swId = source.id;
if (swId != null) {
url = "${proto}://"
def consolidationServerName = getConfigProperty("consolidation_server_name")
def consolidationServerWebPort = getConfigProperty("consolidation_server_web_port")

if (consolidationServerName) {
if (consolidationServerWebPort) {
url += "${consolidationServerName}:${consolidationServerWebPort}"
} else {
url += consolidationServerName
}
} else {
url += shortHostname
}

if (classicType != OBJ_TYPE_SYSTEM) {
url += "/dashboard?dashboardName=Summary&contextPath=${sourceDescriptor?.eyeServerId}%2C%2Csw%3A${sourceDescriptor?.eyeServerId}%3A${swId}"
} else {
url = ""
}
}
}

return url.toString()
}

// Second consolidation server - Compute a callback URL for the the object that is the source of the incident

def constructUrl2 = { sourceDescriptor ->
def url = "";
def classicType = sourceDescriptor?.classicType

if (source == null) return("") // System event/incident so no monitored component

def OBJ_TYPE_SYSTEM = com.entuity.events.event.ObjType.OBJ_TYPE_SYSTEM.toInt()
def OBJ_TYPE_VIEW = com.entuity.events.event.ObjType.OBJ_TYPE_VIEW.toInt()

if(classicType != OBJ_TYPE_VIEW) {
def proto = getConfigProperty("server.ssl_enabled") == "true" ? "https" : "http"
def swId = source.id;
if (swId != null) {
url = "${proto}://"
def consolidationServerName = getConfigProperty("alt_consolidation_server_name")
def consolidationServerWebPort = getConfigProperty("alt_consolidation_server_web_port")

if (consolidationServerName) {
if (consolidationServerWebPort) {
url += "${consolidationServerName}:${consolidationServerWebPort}"
} else {
url += consolidationServerName
}
} else {
url += shortHostname
}

if (classicType != OBJ_TYPE_SYSTEM) {
url += "/dashboard?dashboardName=Summary&contextPath=${sourceDescriptor?.eyeServerId}%2C%2Csw%3A${sourceDescriptor?.eyeServerId}%3A${swId}"
} else {
url = ""
}
}
}

return url.toString()
}

// enrich source descriptor with device id
def sd = sourceDescriptor
sd.enrich(facilities)

def callbackUrl = constructUrl(sourceDescriptor) + "\r\n"
if (getConfigProperty("alt_consolidation_server_name")) {
callbackUrl += "If you're unable to use the above link use the following link instead\r\n" + constructUrl2(sourceDescriptor) + "\r\n"
}

def sourceType = "ENA System"
if (source) {
sourceType = source.type
} else {
callbackUrl = ""
}

"Device Name=" + sourceName + ipString + "\r\nIncident Type=" + name +"\r\nSource Type=" + sourceType +"\r\nSeverity=" + severityString +"\r\nDetails=" + reason + "\r\nLast Updated=" + new Date(lastUpdatedMs).toString() +"\r\nFirst Opened=" + new Date(firstOpenedMs).toString() + "\r\n" + callbackUrl + "\r\n"
