Object Attributes dashlet

Introduction

To add an Object Attributes dashlet to a custom dashboard

To configure or export the table in the dashlet

To show the history of an attribute

To show the attribute data on a chart

To edit an attribute

RESTful API

Introduction:

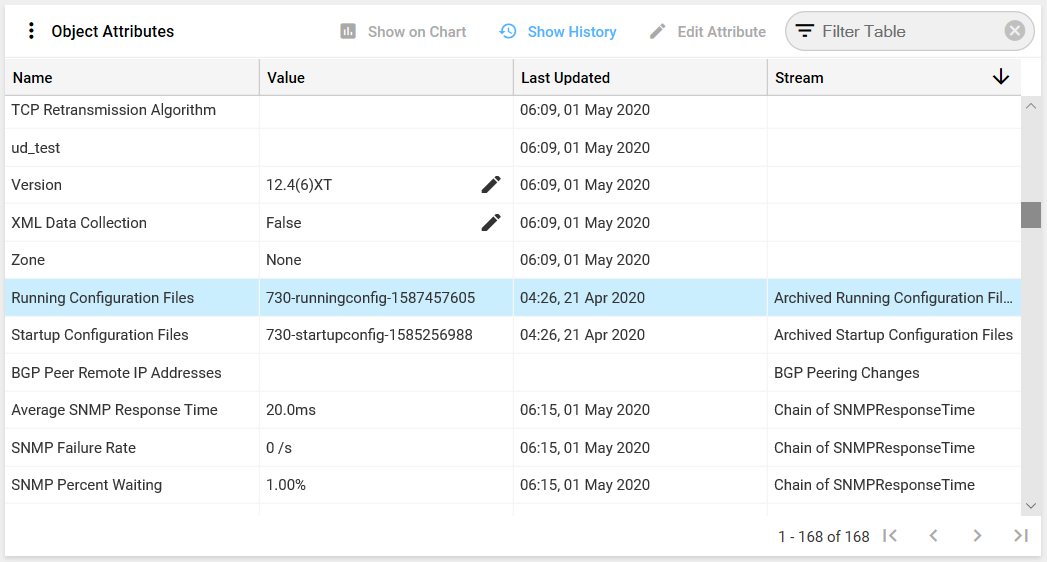

The Object Attributes dashlet lists the attributes of the selected managed object.

The Object Attributes dashlet is applicable to all data sources.

To add an Object Attributes dashlet to a custom dashboard:

1. When adding a dashlet to a new custom dashboard or editing an existing custom dashboard, follow the instructions for adding a dashlet, select Object Attributes in the Select Dashlet Type, and click Next.
2. The Create Dashlet form will slide in on the right.




3. Enter a name for your dashlet in the Name field.
4. You can then choose the source of the data to be displayed in the dashlet.
   • If you want this dashlet to source its data from the context of its parent dashboard, select Dashboard. You can see the context of the parent dashboard in the Dashboard Context field at the top of the form.
   • If you want this dashlet to source its data from another dashlet in this current dashboard, select Dashlet.
   • If you want this dashlet to source its data from a specific managed object on your network, select Fixed Object. You can then click Browse to an object to search for the managed object in Explorer, or drag into the box your desired managed object in from another browser window.
5. Choose whether you want the dashlet table to display empty attributes in the Show Hidden Data field. This can also be selected via the dashlet's Overflow Menu.

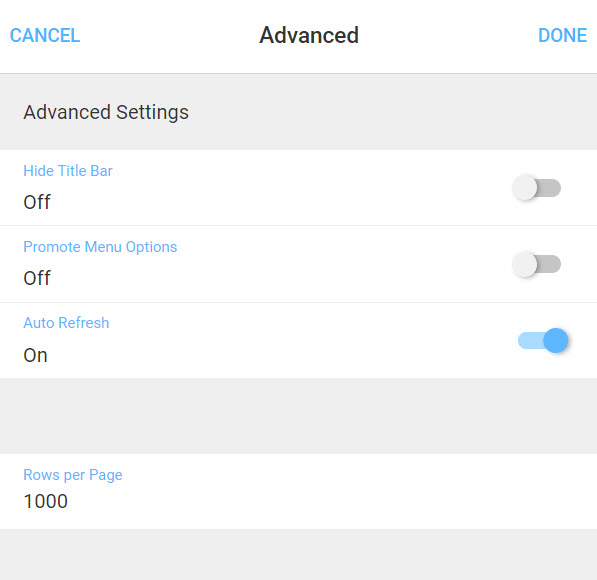

6. Click the Advanced Settings field to open the Advanced Settings form.




   1. Choose whether you want to hide the title of the dashlet in the Hide Title Bar field. If selected, the dashlet's Overflow Menu will also be hidden, but in the Promote Menu Options field you can then choose if you want to display the options in the dashlet's Overflow Menu in the overall dashboard's Overflow Menu.
   2. Choose whether you want the dashlet to automatically refresh in the Auto Refresh field. By default this is set to On.
   3. Choose the number of rows of information to display per page in the Rows per Page field, which by default is set to 1,000.
   4. Click Done in the top right of the form to save and return to the Create Dashlet form, otherwise click Cancel.
7. Click Done in the top right of the form, otherwise click Cancel.

To configure or export the table in the dashlet:

Please see the article on configuring tables in Entuity.

Column Name	Column Description
Name	name of the attribute.
Value	value of the attribute (e.g. a name, number, percentage etc). If the attribute is editable (see below), this column will contain a  icon.
Last Updated	time and date the data was last updated.
Stream	the attribute's data stream.
Chartable	From ENA v17.0 P09 and ENA v18.0 P01 upwards. Whether the attribute can be viewed in a chart form or dashlet. If the attribute is chartable, this column will contain a  icon.

To show the history of an attribute:

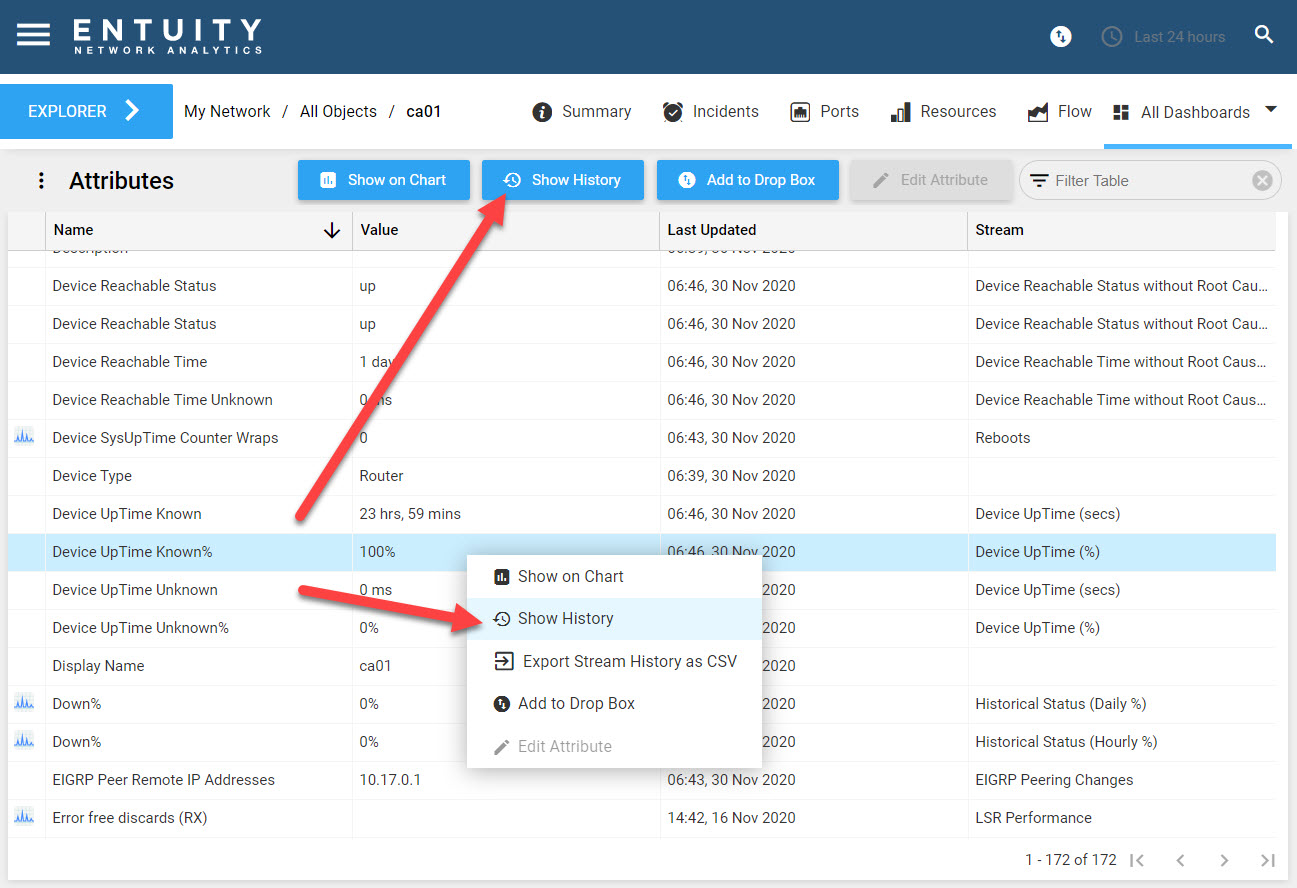

1. Select the attribute you would like to see the history of, and click Show History in the top right of the dashlet, via the dashlet's Overflow Menu or via right clicking on the attribute.

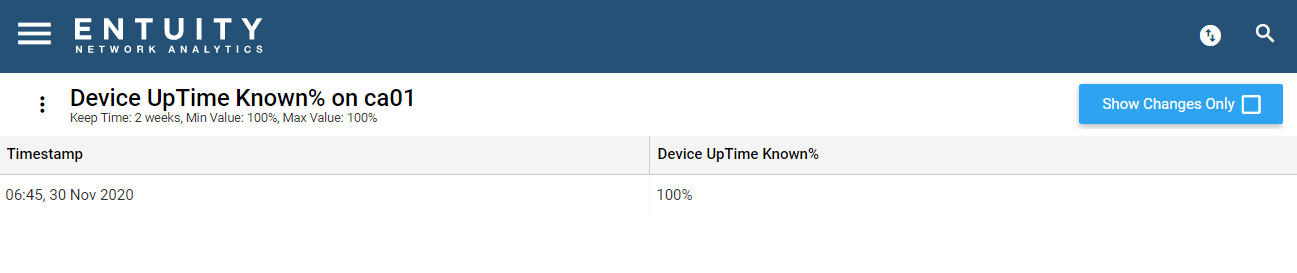

2. This opens the Stream data page, which has two columns:
   • Timestamp - the time and date when the data was recorded.
   • [Attribute] - the selected attributed.




3. To sort the columns in ascending or descending order, click on the column heading of your choice. You can also increase or decrease the width of columns by dragging the column dividers left and right.

To show the attribute data on a chart:

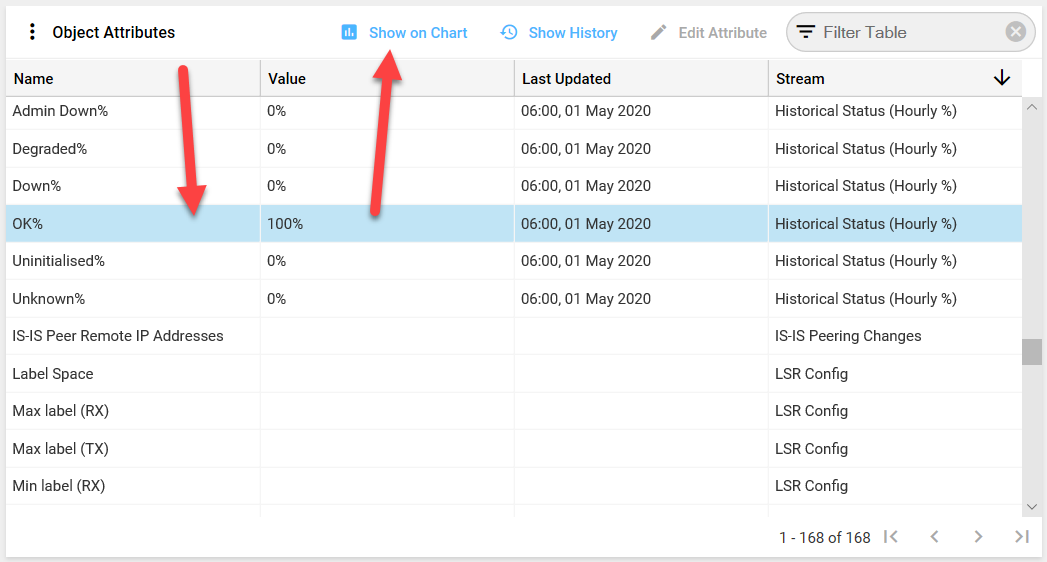

1. Select the attribute you would like to see displayed on a chart.

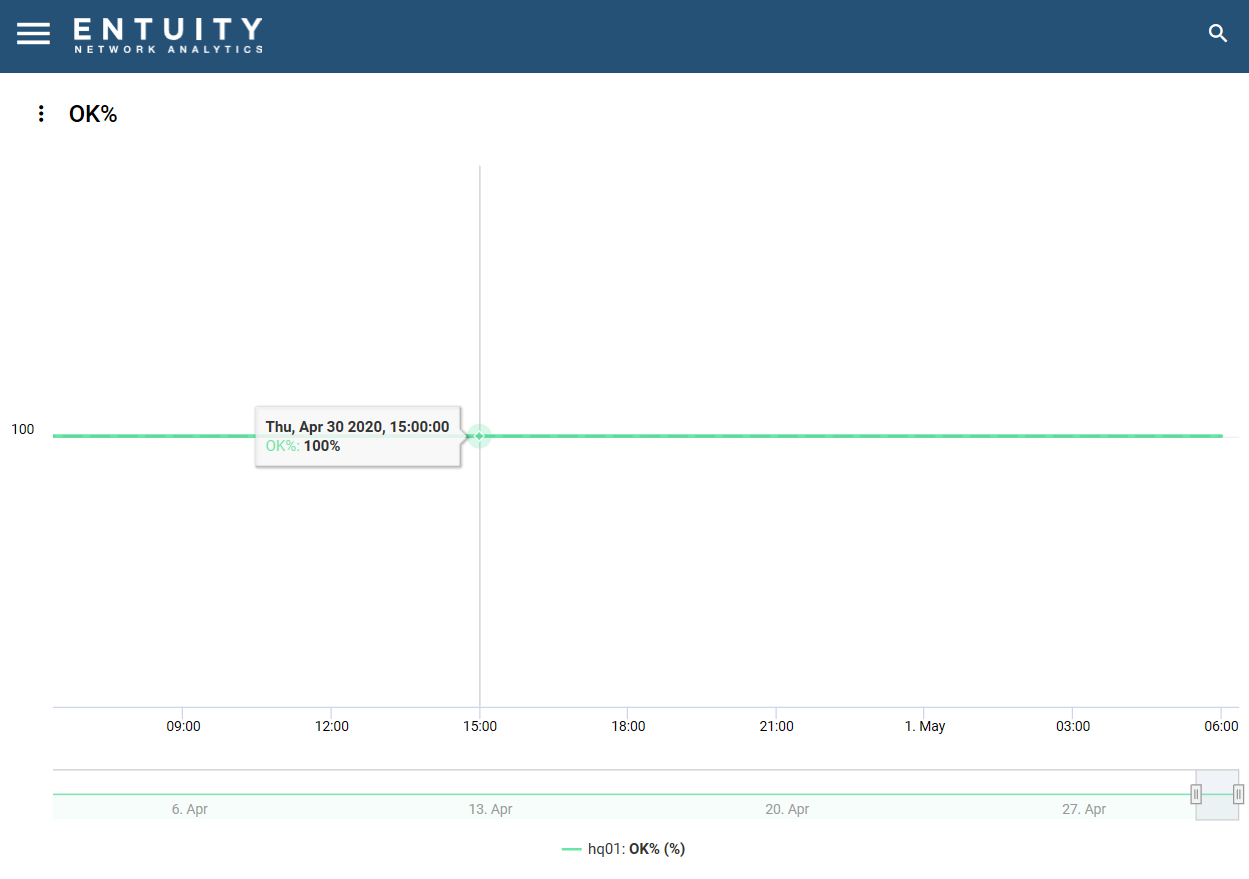

2. If applicable, click Show On Chart in the top right of the dashlet or via the dashlet's Overflow Menu. You can also right click the attribute to access this option (again, if applicable). Note, not all attributes can be displayed on a chart, e.g. names, StormWorks ID etc.



To edit an attribute:

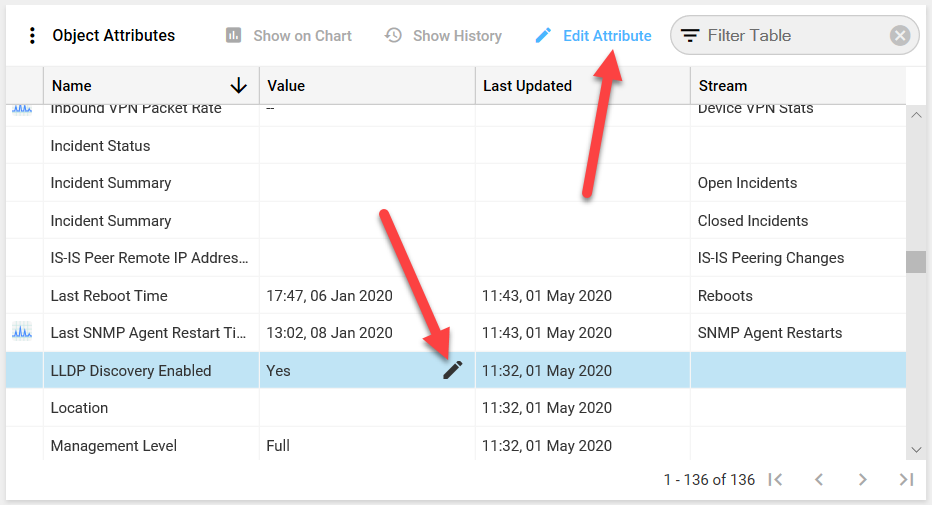

1. Select the attribute you would like to edit. Editable attributes are denoted by the  icon in the Value column.
2. Either click the icon (ENA v18.0 P01 upwards), or click Edit Attribute via the dashlet's Overflow Menu, or via the selected attribute's Context Menu.

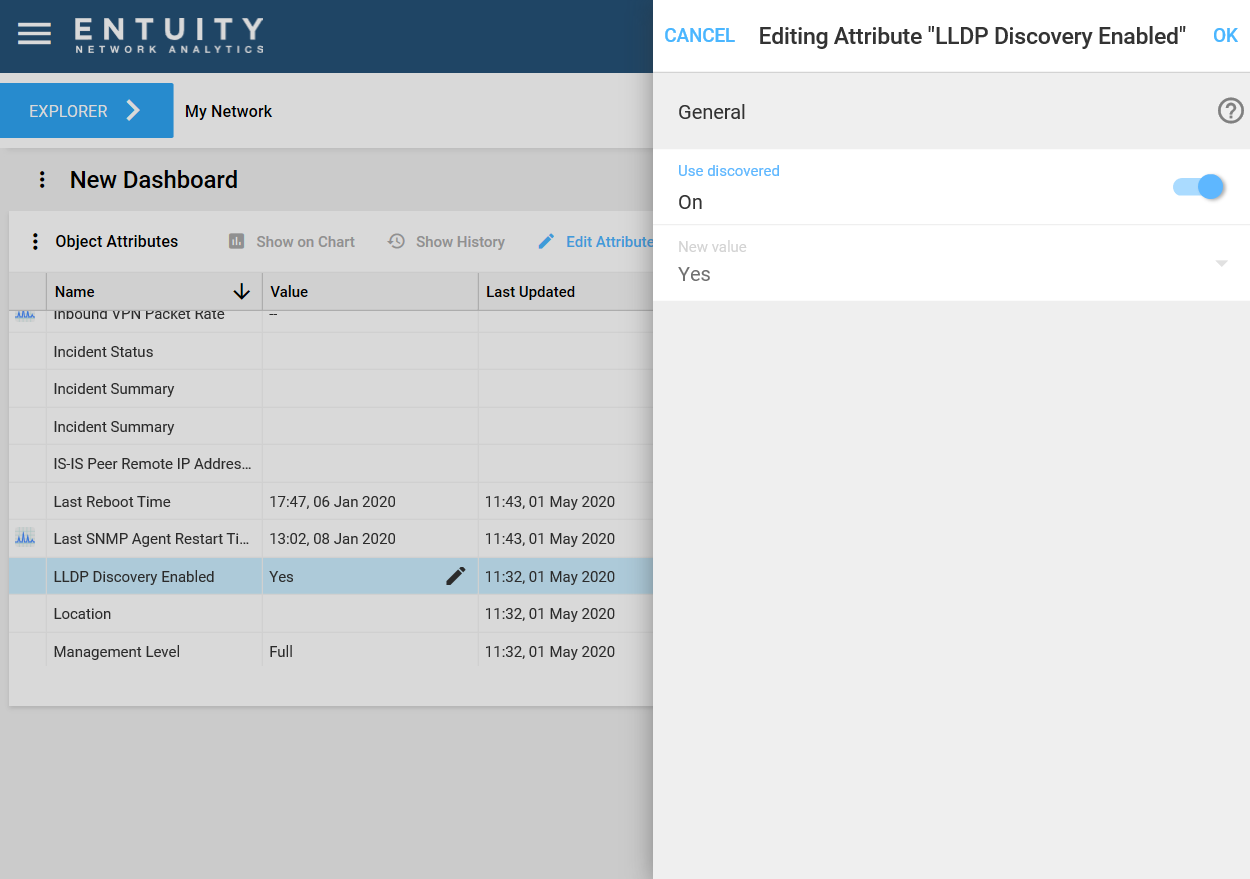

3. The attribute's Editing Attribute [selected attribute] form will slide in on the right.




4. By default, the Use discovered field is set to on. This means that Entuity is using the data it has discovered. If you set this field to off, then you can edit the attribute value text in the New value field below. If you decide to set this field to on again, the attribute value text will revert to its own default the next time the attribute is rediscovered.
5. Click OK to save your changes, or click Cancel.

Note, you cannot edit VLAN attributes from a VLAN Attributes dashboard or from an Object Attributes dashlet. If you want to edit VLAN attributes, please contact Entuity Support for help with this.

RESTful API:

Please see the following for help and information on utilizing Entuity RESTful API to view your object attribute data:

• List attributes of an object.
• List values of an object attribute, and modify an object attribute.
