Entuity offers dashboards that are specific to wireless controllers and their associated devices. Please find below details of the available dashboards, divided between vendors (Aruba, Cisco, Meraki and Trapeze) and generic devices.
The sections below are divided into vendor --> device/component --> dashboards.
Aruba
Wireless Controller
- Summary dashboard
- Key Info - this is a Key Info dashlet. This dashlet displays information about and the status of the selected device.
- Open Incidents - this is an Incidents Summary dashlet. This dashlet displays a pie chart of the incidents by severity level on the selected device.
- Port Summary - this is a Pie Chart dashlet. This dashlet displays the status of ports on the selected device.
- Events Over Time - this is Chart dashlet. This dashlet displays a history of the events on the selected device.
- CPU Utilization - this is a Chart dashlet. This dashlet displays the current and historical CPU utilization in % on the selected device, shown as a percentage of total available CPU.
- Memory Utilization - this is a Chart dashlet. This dashlet displays the current and historical memory utilization in % on the selected device, shown as a percentage of total available memory.
- Latency - this is a Chart dashlet. This dashlet measures the current and historical device latency, measured as the time between an Entuity server sending an ICMP ping echo request to the device and receiving a response.
- SNMP Response - this is a Chart dashlet. This dashlet measures the current and historical SNMP response, measured as the time between an Entuity server sending an SNMP polling request to the device and receiving a response.
- WAPs dashboard
- WAP - this is a Table dashlet. This dashlet lists the WAPs on the selected wireless controller and details about them.
- Antennas - this is a Table dashlet. This dashlet lists the antennas on the WAP selected in the WAP dashlet above and details about them.
- Operational Status - this is a Chart dashlet. This dashlet displays the operational status of the antenna selected in the Antennas dashlet above over a specified period of time.
- Mean Attached Host Count - this is a Chart dashlet. This dashlet displays the mean attached host count of the antenna selected in the Antennas dashlet above over a specified period of time.
- Channel Changes (per second) - this is a Chart dashlet. This dashlet displays the channel changes of the antenna selected in the Antennas dashlet above over a specified period of time.
- Transmitted Power - this is a Chart dashlet. This dashlet displays the transmitted power status of the antenna selected in the Antennas dashlet above over a specified period of time.
- WLANs dashboard
- WLAN - this is a Table dashlet. This dashlet lists the WLANs on the selected wireless controller and details about them.
- Incident Summary - this is an Incidents Summary dashlet. This dashlet displays incidents on the WLAN selected in the WLAN dashlet above.
- WLAN Attached Hosts - this is a Chart dashlet. This dashlet displays attached hosts over a specified time on the WLAN selected in the WLAN dashlet above.
- Access Points Up - this is a Chart dashlet. This dashlet displays the access points in the up state over a specified time on the WLAN selected in the WLAN dashlet above.
- Access Points Down - this is a Chart dashlet. This dashlet displays the access points in the down state over a specified time on the WLAN selected in the WLAN dashlet above.
WLAN
- Summary dashboard
- Key Info - this is a Key Info dashlet. This dashlet displays information about and the status of the selected object.
- Incident Summary - this is an Incidents Summary dashlet. This dashlet displays a pie chart of the incidents by severity level on the selected WLAN.
- Events Over Time - this is a Chart dashlet. This dashlet displays the events over a specified time on the selected WLAN.
- Attached Hosts - this is a Chart dashlet. This dashlet displays the attached hosts on the selected WLAN over a specified time.
- Access Points Up - this is a Chart dashlet. This dashlet displays the access points in the up state over a specified time on the selected WLAN.
- Access Points Down - this is a Chart dashlet. This dashlet displays the access points in the down state over a specified time on the selected WLAN.
WAP
- Summary dashboard
- Key Info - this is a Key Info dashlet. This dashlet displays information about and the ICMP reachability status of the selected WAP.
- Antennas - this is a Table dashlet. This dashlet lists the antennas on the selected WAP and details about them.
- Operational Status - this is a Chart dashlet. This dashlet displays the operational status over a specified period of time of the antenna selected in the Antennas dashlet above.
- Attached Host Count - this is a Chart dashlet. This dashlet displays the attached host count over time of the antenna selected in the Antennas dashlet above.
- Physical Channel Changes - this is a Chart dashlet. This dashlet displays the physical channel changes on the antenna selected in the Antennas dashlet above over a specified period of time.
- Tx Power - this is a Chart dashlet. This dashlet displays the transmitted power on the antenna selected in the Antennas dashlet above over a specified period of time.
Antenna
- Summary dashboard
- Key Info - this is a Key Info dashlet. This dashlet displays information about and the status of the selected object.
- Operational Status - this is a Chart dashlet. This dashlet displays the operational status over a specified period of time of the selected antenna.
- Mean Attached Host Count - this is a Chart dashlet. This dashlet displays the mean attached host count over a specified period of time of the selected antenna.
- Channel Changes - this is a Chart dashlet. This dashlet displays the channel changes over a specified period of time of the selected antenna.
- Transmitted Power - this is a Chart dashlet. This dashlet displays the transmitted power in mW over a specified period of time of the selected antenna.
- Byte Rate (per second) - this is a Chart dashlet. This dashlet displays the byte rate per second over a specified period of time of the selected antenna.
- Packet Rate (per second) - this is a Chart dashlet. This dashlet displays the packet rate per second over a specified period of time of the selected antenna.
- Packet Error Rates (per second) - this is a Chart dashlet. This dashlet displays both the Physical Error Packet Rate per second and the MAC Error Packet Rate per second over a specified period of time of the selected antenna.
- Retry Rate (per second) - this is a Chart dashlet. This dashlet displays the retry rate per second over a specified period of time of the selected antenna.
Cisco
Wireless Controller
- Summary dashboard
- Key Info - this is a Key Info dashlet. This dashlet displays information about and the status of the selected device.
- Open Incidents - this is an Incidents Summary dashlet. This dashlet displays a pie chart of the incidents by severity level on the selected device.
- Port Summary - this is a Pie Chart dashlet. This dashlet displays the status of ports on the selected device.
- Events Over Time - this is Chart dashlet. This dashlet displays a history of the events on the selected device.
- CPU Utilization - this is a Chart dashlet. This dashlet displays the current and historical CPU utilization in % on the selected device, shown as a percentage of total available CPU.
- Memory Utilization - this is a Chart dashlet. This dashlet displays the current and historical memory utilization in % on the selected device, shown as a percentage of total available memory.
- Latency - this is a Chart dashlet. This dashlet measures the current and historical device latency, measured as the time between an Entuity server sending an ICMP ping echo request to the device and receiving a response.
- SNMP Response - this is a Chart dashlet. This dashlet measures the current and historical SNMP response, measured as the time between an Entuity server sending an SNMP polling request to the device and receiving a response.
- WAPs dashboard
- WAP - this is a Table dashlet. This dashlet lists the WAPs on the selected wireless controller and details about them.
- Antennas - this is a Table dashlet. This dashlet lists the antennas on the WAP selected in the WAP dashlet above and details about them.
- Operational Status - this is a Chart dashlet. This dashlet displays the operational status of the antenna selected in the Antennas dashlet above over a specified period of time.
- Mean Attached Host Count - this is a Chart dashlet. This dashlet displays the mean attached host count on the antenna selected in the Antennas dashlet above over a specified period of time.
- Channel Changes (per second) - this is a Chart dashlet. This dashlet displays the channel changes on the antenna selected in the Antennas dashlet above over a specified period of time.
- Transmitted Power - this is a Chart dashlet. This dashlet displays the transmitted power status on the antenna selected in the Antennas dashlet above over a specified period of time.
- WLANs dashboard
- WLAN - this is a Table dashlet. This dashlet lists the WLANs on the selected wireless controller and details about them.
- Incident Summary - this is an Incidents Summary dashlet. This dashlet displays a pie chart of the incidents by severity level on the WLAN selected in the WLAN dashlet above.
- WLAN Attached Hosts - this is a Chart dashlet. This dashlet lists the attached hosts on the WLAN selected in the WLAN dashlet above.
- QoS/Interface dashboard
WLAN
- Summary dashboard
- Key Info - this is a Key Info dashlet. This dashlet displays information about and the status of the selected WLAN.
- Incident Summary - this is an Incidents Summary dashlet. This dashlet displays a pie chart of the incidents by severity level on the selected WLAN.
- Events Over Time - this is a Chart dashlet. This dashlet displays events on the selected WLAN over a specified period of time.
- Attached Hosts - this is a Chart dashlet. This dashlet displays the attached hosts on the selected WLAN over a specified period of time.
- Events List - this is an Events List dashlet. This dashlet lists the events on the selected WLAN and details about them.
WAP
- Summary dashboard
- Key Info - this is a Key Info dashlet. This dashlet displays information about and the ICMP reachability status of the selected WAP.
- Antennas - this is a Table dashlet. This dashlet lists the antennas on the selected WAP and details about them.
- Oper Status - this is a Chart dashlet. This dashlet displays the operational status of the antenna selected in the Antennas dashlet above over a specified period of time.
- Attached Host Count - this is a Chart dashlet. This dashlet displays the attached host count on the antenna selected in the Antennas dashlet above over a specified period of time.
- Physical Channel Changes - this is a Chart dashlet. This dashlet displays the physical channel changes on the antenna selected in the Antennas dashlet above over a specified period of time.
- Transmitted Power - this is a Chart dashlet. This dashlet displays the power transmitted on the antenna selected in the Antennas dashlet above over a specified period of time.
Wireless QoS Profile
- Summary dashboard
- Key Info - this is a Key Info dashlet. This dashlet displays information about and the status of the selected wireless QoS profile.
- Incident Summary - this is an Incidents Summary dashlet. This dashlet displays a pie chart of the incidents by severity level on the selected wireless QoS profile.
- Events Over Time - this is a Chart dashlet. This dashlet displays the events on the selected wireless QoS profile over a specified period of time.
Wireless Controller Interface
- Summary dashboard
- Key Info - this is a Key Info dashlet. This dashlet displays information about and the status of the selected wireless controller interface.
- Incident Summary - this is an Incidents Summary dashlet. This dashlet displays a pie chart of the incidents by severity level on the selected wireless controller interface.
- Events Over Time - this is a Chart dashlet. This dashlet displays the events on the selected wireless controller interface over a specified period of time.
Antenna
- Summary dashboard
- Key Info - this is a Key Info dashlet. This dashlet displays information about and the status of the selected object.
- Transmitted Frames (per second) - this is Chart dashlet. This dashlet displays the transmitted frames per second on the selected antenna over a specified time period.
- Multicast Frames (per second) - this is Chart dashlet. This dashlet displays the multicast frames per second on the selected antenna over a specified time period.
- RTS Success Rate - this is Chart dashlet. This dashlet displays the RTS success rate on the selected antenna over a specified time period.
- WEP Undecryptables (per second) - this is Chart dashlet. This dashlet displays the WEP undecryptables per second on the selected antenna over a specified time period.
- Utilization - this is Chart dashlet. This dashlet displays the Receiver Utilization, Transmitter Utilization and Channel Utilization on the selected antenna over a specified time period.
- Operational Status - this is Chart dashlet. This dashlet displays the operational status of the selected antenna over a specified time period.
- Mean Attached Host Count - this is Chart dashlet. This dashlet displays the transmitted frames per second on the selected antenna over a specified time period.
- Channel Changes - this is Chart dashlet. This dashlet displays the channel changes on the selected antenna over a specified time period.
- Transmitted Power - this is Chart dashlet. This dashlet displays the transmitted power on the selected antenna over a specified time period.
- Frame Duplicates - this is Chart dashlet. This dashlet displays the frame duplicates on the selected antenna over a specified time period.
- Multiple Retries (per second) - this is Chart dashlet. This dashlet displays the multiple retries per second on the selected antenna over a specified time period.
- Failures (per second) - this is Chart dashlet. This dashlet displays the failures per second on the selected antenna over a specified time period. It specifies RTS Failure, ACK Failure, FCS Errors, and Transmit Failures.
- Profile Monitor states - this is Chart dashlet. This dashlet displays the profile monitor states on the selected antenna over a specified time period. It specifies Load, Interference, Noise, and Coverage.
Meraki
Meraki WAP, Cloud Controller and Network dashboards are applicable for ENA v17.0 P03 upwards
WAP
- Summary dashboard
- Key Info - this is a Key Info dashlet. This dashlet displays information about and the ICMP reachability status of the selected Meraki WAP.
- Antennas - this is a Table dashlet. This dashlet lists the antennas on the selected WAP and details about them.
- Operational Status - this is a Chart dashlet. This dashlet displays the operational status of the antenna selected in the Antennas dashlet above over a specified period of time.
- Attached Host Count - this is a Chart dashlet. This dashlet displays the attached hosts antenna selected in the Antennas dashlet above .
- Physical Channel Changes - this is a Chart dashlet. This dashlet displays the physical channel changes antenna selected in the Antennas dashlet above.
- Transmitted Power - this is a Chart dashlet. This dashlet displays the transmitted power in mW over a specified period of time on the antenna selected in the Antennas dashlet above.
Cloud Controller
- Summary dashboard
- Key Info - this is a Key Info dashlet. This dashlet displays information about and the status of the selected object.
- Organizations - this is a Table dashlet. This dashlet lists the organizations that you are able to see on the Meraki Cloud Controller.
- Type Licenses - this is a Table dashlet. This dashlet lists the licenses, their type and their count that can be found in the organization selected in the Organizations dashlet above.
- Network - this is a Table dashlet. This dashlet lists the networks that can be found in the organization selected in the Organizations dashlet above.
- VPN Peers - this is a Table dashlet. This dashlet lists the VPN peers that can be found in the organization selected in the Organizations dashlet above.
Network
- Summary dashboard
- Key Info - this is a Key Info dashlet. This dashlet displays information about and the status of the selected network.
- VLANS - this is a Table dashlet. This dashlet lists the VLANs on the selected network.
- (Entuity v21.0 P01 upwards) Site to Site VPN Peers - this is a Table dashlet. This dashlet lists any site-to-site VPN peers on the Meraki network.
- Devices - this is a Table dashlet. This dashlet lists the Meraki devices found on the selected network.
Meraki Organization, VLAN, VPN Peer and Device dashboards are applicable for ENA v17.0 P05 upwards
Organization
- Summary dashboard
- Key Info - this is a Key Info dashlet. This dashlet displays information about and the status of the selected organization.
- Type Licenses - this is a Table dashlet. This dashlet lists the licenses, their type and their count that can be found in the selected organization.
- Network - this is a Table dashlet. This dashlet lists the networks that can be found in the selected organization.
- VPN Peers - this is a Table dashlet. This dashlet lists the VPN peers that can be found in the selected organization.
VLAN
- Summary dashboard
- Key Info - this is a Key Info dashlet. This dashlet displays information about and the status of the selected VLAN.
- Meraki VLAN Reserved IPs - this is a Table dashlet. This dashlet lists the reserved IP addresses for the VLAN, along with supporting comments.
- Meraki VLAN Fixed IPs - this is a Table dashlet. This dashlet lists the fixed IP addresses for the VLAN.
VPN Peer
- Summary dashboard
- Key Info - this is a Key Info dashlet. This dashlet displays information about and the status of the selected VPN peer.
Device
- Summary dashboard
- Key Info - this is a Key Info dashlet. This dashlet displays information about and the status of the selected Meraki device. From Entuity v19.0 P03 upwards, this also details Meraki Uplinks and callback URLs.
- Incident Summary - this is an Incidents Summary dashlet. This dashlet displays a pie chart of the incidents by severity level on the selected Meraki device.
- Events Over Time - this is a Chart dashlet. This dashlet displays events on the selected Meraki Device over a specified period of time.
Wireless Controller
- WAPs dashboard
- WAP - this is a Table dashlet. This dashlet lists the WAPs on the selected wireless controller and details about them.
- Traffic - this is a Chart dashlet. This dashlet displays the traffic rate over a specified period of time on the selected wireless controller.
- Interfaces - this is a Table dashlet. This dashlet lists the wireless controller interfaces on the selected wireless controller and details about them.
- Packet Rate - this is a Chart dashlet. This dashlet displays the packet rate over a specified period of time of the selected wireless controller.
Trapeze
Wireless Controller

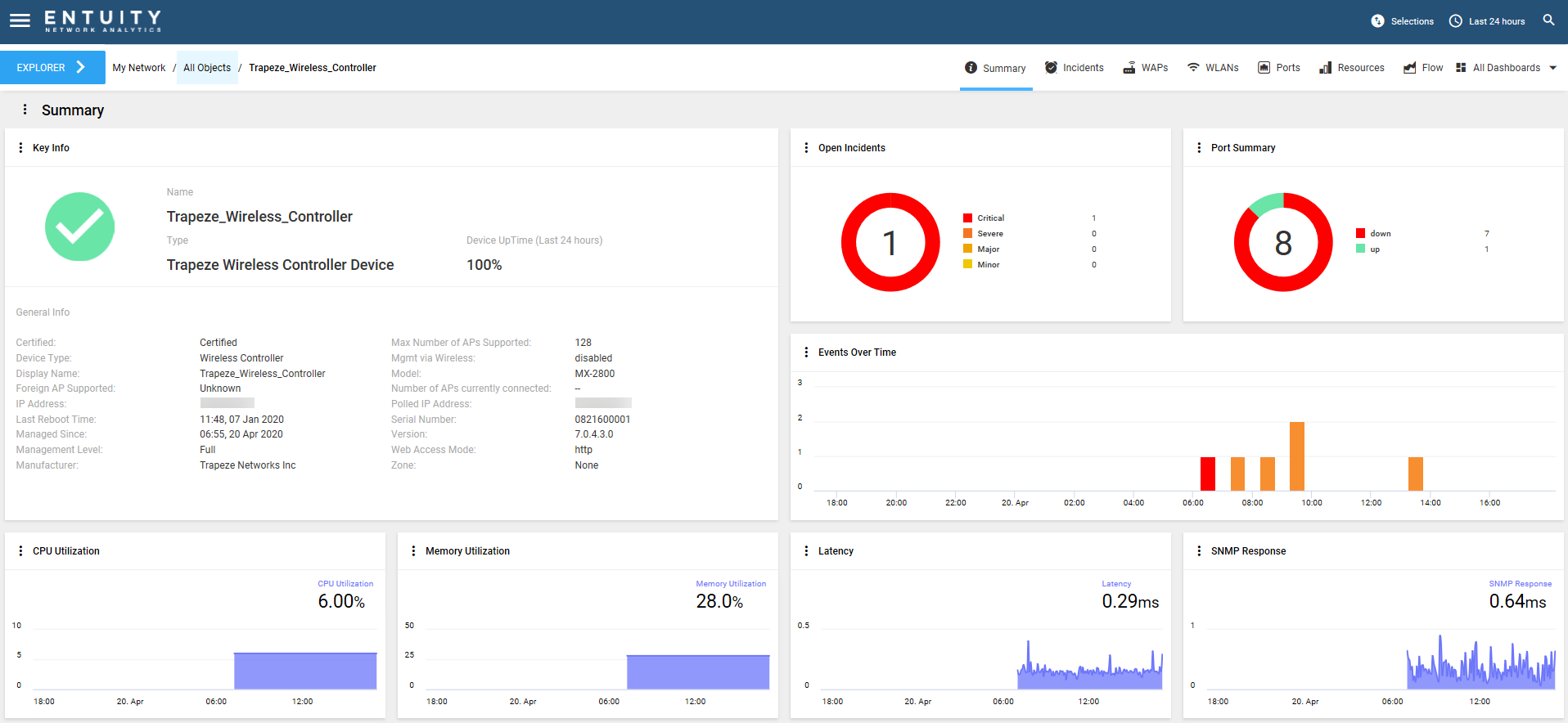

- Summary dashboard
- Key Info - this is a Key Info dashlet. This dashlet displays information about and the status of the selected wireless controller.
- Open Incidents - this is an Incidents Summary dashlet. This dashlet displays a pie chart of the incidents by severity level on the selected wireless controller.
- Port Summary - this is a Pie Chart dashlet. This dashlet displays a summary of statuses of the ports on the selected wireless controller.
- Events Over Time - this is Chart dashlet. This dashlet specifies the events over a specified period of time on the selected wireless controller.
- CPU Utilization - this is a Chart dashlet. This dashlet specifies the CPU utilization in % of the selected wireless controller over a specified period of time.
- Memory Utilization - this is a Chart dashlet. This dashlet displays the memory utilization as a % of the selected wireless controller over a specified period of time.
- Latency - this is a Chart dashlet. This dashlet displays the latency in ms of the selected wireless controller over a specified period of time.
- SNMP Response - this is a Chart dashlet. This dashlet displays the SNMP response of the selected wireless controller over a specified period of time.
- WAPs dashboard
- WAP - this is a Table dashlet. This dashlet lists the WAPs on the selected wireless controller and details about them.
- Antennas - this is a Table dashlet. This dashlet lists the antennas on the WAP selected in the WAP dashlet above and details about them.
- Operational Status - this is a Chart dashlet. This dashlet displays the operational status of the antenna selected in the Antennas dashlet above over a specified period of time.
- Mean Attached Host Count - this is a Chart dashlet. This dashlet displays the mean attached host count of the antenna selected in the Antennas dashlet above over a specified period of time.
- Channel Changes (per second) - this is a Chart dashlet. This dashlet displays the channel changes of the antenna selected in the Antennas dashlet above over a specified period of time.
- Transmitted Power - this is a Chart dashlet. This dashlet displays the transmitted power status of the antenna selected in the Antennas dashlet above over a specified period of time.
- WLANs dashboard
- WLAN - this is a Table dashlet. This dashlet lists the WLANs on the selected wireless controller and details about them.
- Incident Summary - this is an Incidents Summary dashlet. This dashlet displays a pie chart of the incidents by severity level on the WLAN selected in the WLAN dashlet above.
- WLAN Attached Hosts - this is a Chart dashlet. This dashlet displays the attached hosts over a specified time on the WLAN selected in the WLAN dashlet above.
WLAN
- Summary dashboard
- Key Info - this is a Key Info dashlet. This dashlet displays information about and the status of the selected WLAN.
- Incident Summary - this is an Incidents Summary dashlet. This dashlet displays a pie chart of the incidents by severity level on the selected WLAN.
- Events Over Time - this is a Chart dashlet. This dashlet displays the events on the selected WLAN over a specified period of time.
- Attached Hosts - this is a Chart dashlet. This dashlet displays the attached hosts on the selected WLAN over a specified period of time.
- Events List - this is an Events List dashlet. This dashlet lists events on the selected WLAN and details about them.
WAP
- Summary dashboard
- Key Info - this is a Key Info dashlet. This dashlet displays information about and the ICMP reachabilitystatus of the selected WAP.
- Antennas - this is a Table dashlet. This dashlet lists the antennas on the selected WAP and details about them.
- Operational Status - this is a Chart dashlet. This dashlet displays the operational status of the antenna selected in the Antennas dashlet above over a specified period of time.
- Attached Host Count - this is a Chart dashlet. This dashlet displays the attached hosts antenna selected in the Antennas dashlet above .
- Physical Channel Changes - this is a Chart dashlet. This dashlet displays the physical channel changes antenna selected in the Antennas dashlet above.
- Tx Power - this is a Chart dashlet. This dashlet displays the transmitted power in mW over a specified period of time on the antenna selected in the Antennas dashlet above.
Antenna
- Summary dashboard
- Key Info - this is a Key Info dashlet. This dashlet displays information about and the status of the selected object.
- Operational Status - this is a Chart dashlet. This dashlet displays the operational status of the selected antenna over a specified period of time.
- Mean Attached Host Count - this is a Chart dashlet. This dashlet displays the mean attached hosts on the selected antenna over a specified period of time.
- Channel Changes (per second) - this is a Chart dashlet. This dashlet displays the channel changes per second on the selected antenna over a specified period of time.
- Transmitted Power - this is a Chart dashlet. This dashlet displays the transmitted power on the selected antenna over a specified period of time.
- Errors (per second) - this is a Chart dashlet. This dashlet displays the errors per second on the selected antenna over a specified period of time.
- Byte Rate (per second) - this is a Chart dashlet. This dashlet displays the byte rate per second on the selected antenna over a specified period of time.
- Packet Rate (per second) - this is a Chart dashlet. This dashlet displays the packet rate per second on the selected antenna over a specified period of time.
- Other - this is a Chart dashlet. This dashlet displays the reset rate per second on the selected antenna over a specified period of time.
Viptela
vManage Cloud Controller
- Summary dashboard
- Key Info - this is a Key Info dashlet. This dashlet displays information about and the status of the selected vManage Cloud Controller.
- Open Incidents - this is an Incidents Summary dashlet. This dashlet displays a pie chart of the incidents by severity level on the selected vManage Cloud Controller.
- Device Counts by Status - this is a Pie Chart dashlet. This dashlet displays the number of devices on the selected vManage Cloud Controller by device status.
- Events Over Time - this is a Chart dashlet. This dashlet displays a history of the events on the selected vManage Cloud Controller over a specified time period.
- Devices - this is a Table dashlet. This dashlet lists the vEdge devices on the selected vManage Cloud Controller, as well as details about each.
Generic
AP Antenna
- Summary dashboard
- Operational Status - this is a Chart dashlet. This dashlet displays the operational status of the selected antenna over a specified period of time.
- Key Info - this is a Key Info dashlet. This dashlet displays information about and the status of the selected object.
- Mean Attached Host Count - this is a Chart dashlet. This dashlet displays the mean attached hosts on the selected antenna over a specified period of time.
- Transmitted Power - this is a Chart dashlet. This dashlet displays the transmitted power on the selected antenna over a specified period of time.
- Channel Changes (per second) - this is a Chart dashlet. This dashlet displays the channel changes per second on the selected antenna over a specified period of time.
WAP
- Summary dashboard
- Key Info - this is a Key Info dashlet. This dashlet displays information about and the ICMP reachability status of the selected WAP.
- Events List - this is an Events List dashlet. This dashlet lists events on the selected WAP and details about them.
- Attached Hosts - this is a Chart dashlet. This dashlet displays the attached host count on the selected WAP over a specified period of time.
- Incidents Summary - this is an Incidents Summary dashlet. This dashlet displays a pie chart of the incidents by severity level on the selected WAP.
- Events Over Time - this is a Chart dashlet. This dashlet displays events on the selected WAP over a specified period of time.
Wireless Controller
- WAPs dashboard
- WAP - this is a Table dashlet. This dashlet lists the WAPs on the selected wireless controller and details about them.
- Antennas - this is a Table dashlet. This dashlet lists the antennas on the WAP selected in the WAP dashlet above and details about them.
- Channel Changes (per second) - this is a Chart dashlet. This dashlet displays the channel changes of the antenna selected in the Antennas dashlet above over a specified period of time.
- Transmitted Power - this is a Chart dashlet. This dashlet displays the transmitted power status of the antenna selected in the Antennas dashlet above over a specified period of time.
- Mean Attached Host Count - this is a Chart dashlet. This dashlet displays the mean attached host count of the antenna selected in the Antennas dashlet above over a specified period of time.
- Operational Status - this is a Chart dashlet. This dashlet displays the operational status of the antenna selected in the Antennas dashlet above over a specified period of time.
- WLANs dashboard
- WLAN - this is a Table dashlet. This dashlet lists the WLANs on the selected wireless controller and details about them.
- WLAN Attached Hosts - this is a Chart dashlet. This dashlet displays the attached hosts on the selected WLAN in the WLAN dashlet above over a specified period of time.
- Incidents Summary - this is an Incidents Summary dashlet. This dashlet displays a pie chart of the incidents by severity level on the WLAN selected in the WLAN dashlet above.
WLAN
- Summary dashboard
- Key Info - this is a Key Info dashlet. This dashlet displays information about and the status of the selected WLAN.
- Events List - this is an Events List dashlet. This dashlet lists events on the selected WLAN and details about them.
- Attached Hosts - this is a Chart dashlet. This dashlet displays the attached hosts on the selected WLAN over a specified period of time.
- Incident Summary - this is an Incidents Summary dashlet. This dashlet displays a pie chart of the incidents by severity level on the selected WLAN.
- Events Over Time - this is a Chart dashlet. This dashlet displays events on the selected WLAN over a specified period of time.
Comments
0 comments
Please sign in to leave a comment.
