How do I view server monitoring data?

Dashboards

Reports

Dashboards:

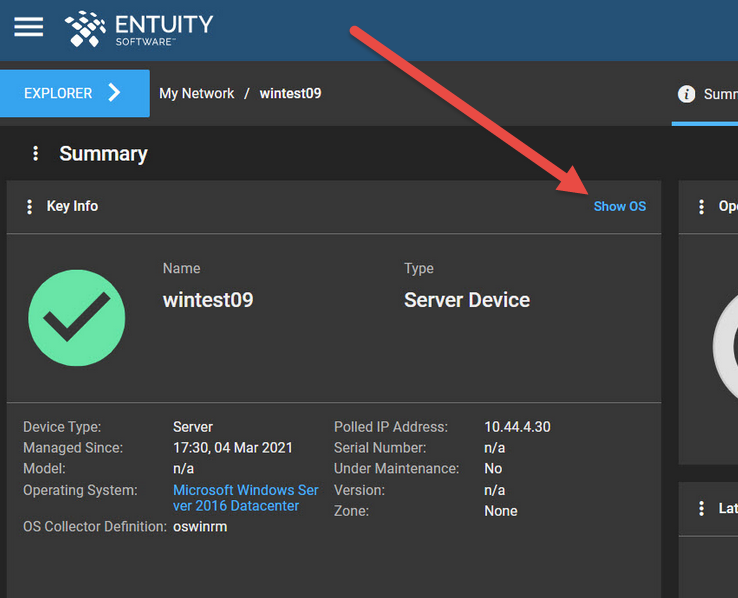

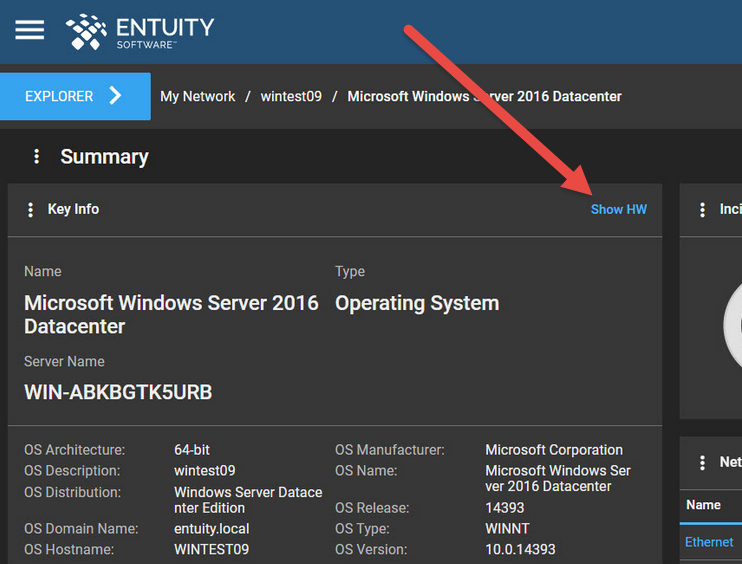

You can view server data from the following dashboards. Note, in the Key Info dashlet of the Summary dashboards, you can click either Show OS or Show HW in the top right of the dashlet to access the Summary dashboard for that particular server's OS or return to the server device itself respectively:

Summary dashboard:

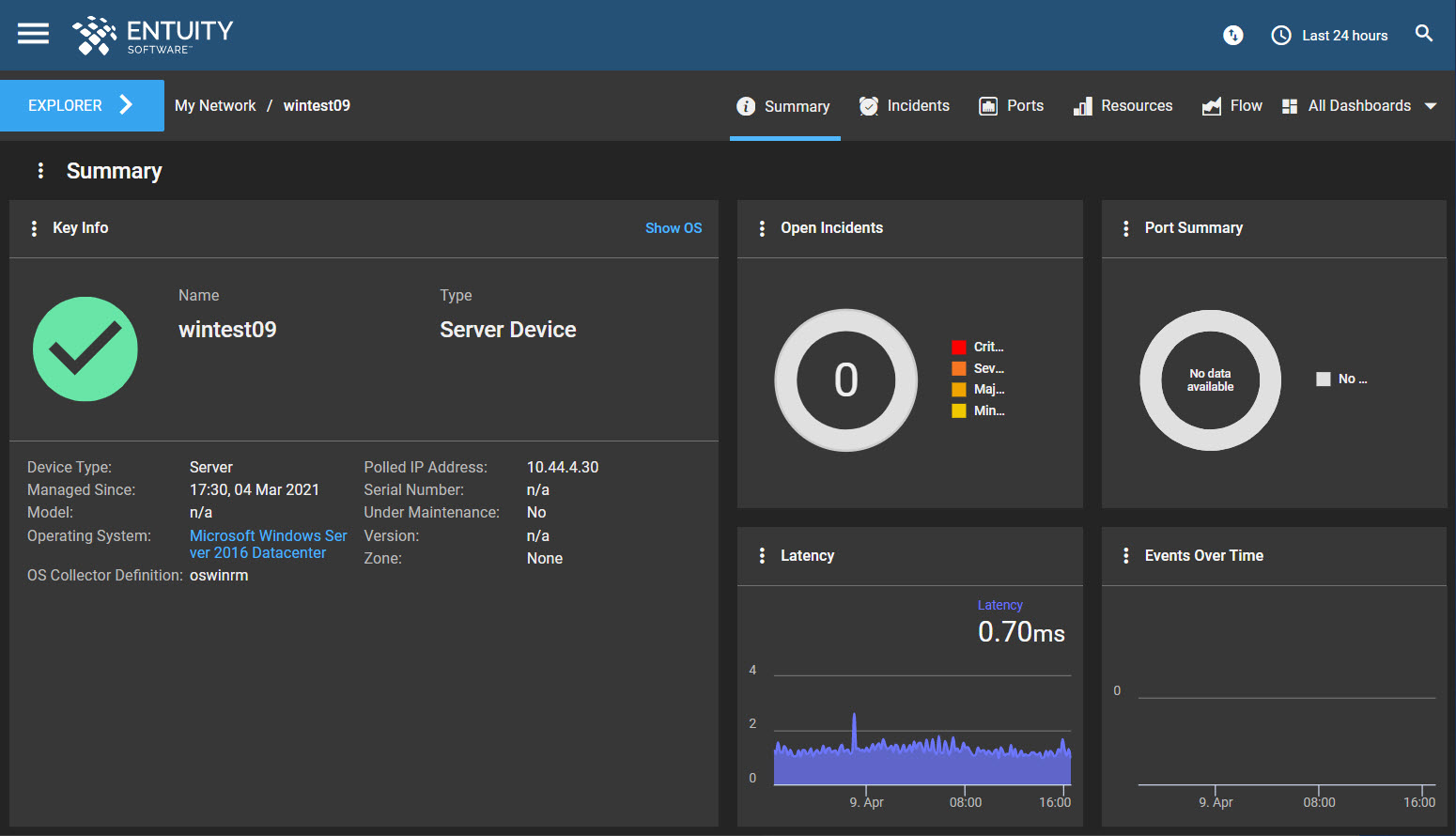

Server device:

• Key Info - this is a Key Info dashlet. This dashlet displays information about and the status of the selected server device.
• Open Incidents - this is an Incidents Summary dashlet. This dashlet displays a pie chart of the incidents by severity level on the selected server device.
• Port Summary - this is a Pie Chart dashlet. This dashlet displays the status of ports on the selected server device.
• Latency - this is a Chart dashlet. This dashlet measures the current and historical device latency, measured as the time between an Entuity server sending a request to the server device and receiving a response.
• Events Over Time - this is a Chart dashlet. This dashlet displays a history of the events on the selected server device.

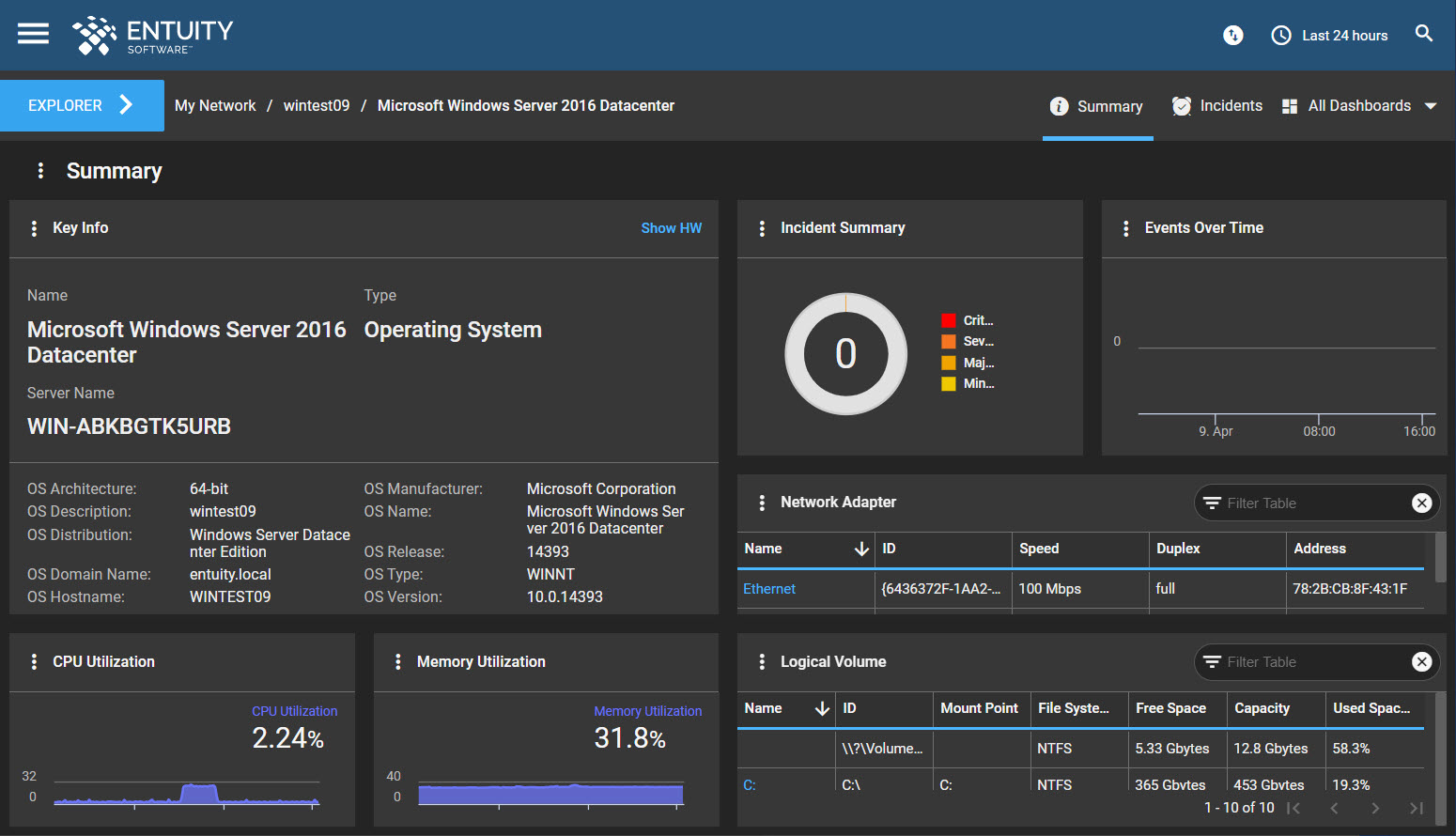

Server OS:

• Key Info - this is a Key Info dashlet. This dashlet displays information about and the status of the selected server OS.
• Open Incidents - this is an Incidents Summary dashlet. This dashlet displays a pie chart of the incidents by severity level on the selected server OS.
• Events Over Time - this is a Chart dashlet. This dashlet displays a history of the events on the selected server OS.
• Network Adapter - this is a Table dashlet. This dashlet lists and details the network adapters on the server OS. Click on a network adapter to navigate to its Summary dashboard. From Entuity v20.0 P03 upwards, the IP addresses (and type of IP) of network adapters are collected and added to the network adapter objects as associations.
• CPU Utilization - this is a Chart dashlet. This dashlet displays the current and historical CPU utilization on the selected server OS, shown as a percentage of total available CPU.
• Memory Utilization - this is a Chart dashlet. This dashlet displays the current memory utilization on the selected server OS, shown as a percentage of total available memory.
• Logical Volume - this is a Table dashlet. This dashlet lists and details the logical volumes of the selected server OS. Click on a logical volume to navigate to its Summary dashboard.

Server hardware:

Entuity provides summary dashboards for the following server hardware:

HW Blade (from Entuity v21.0 upwards)

HW Controller

HW Disk Controller (from Entuity v21.0 upwards)

HW IO Module

HW Logical Disk

HW Memory Module

HW Physical Disk

HW Power Supply

HW Processor

HW Other

• Key Info - this is a Key Info dashlet. This dashlet displays information about and the status of the selected server hardware.
• Incident Summary - this is an Incidents Summary dashlet. This dashlet displays a pie chart of the incidents by severity level on the selected server hardware.
• Events Over Time - this is a Chart dashlet. This dashlet displays a history of the events on the selected server hardware.

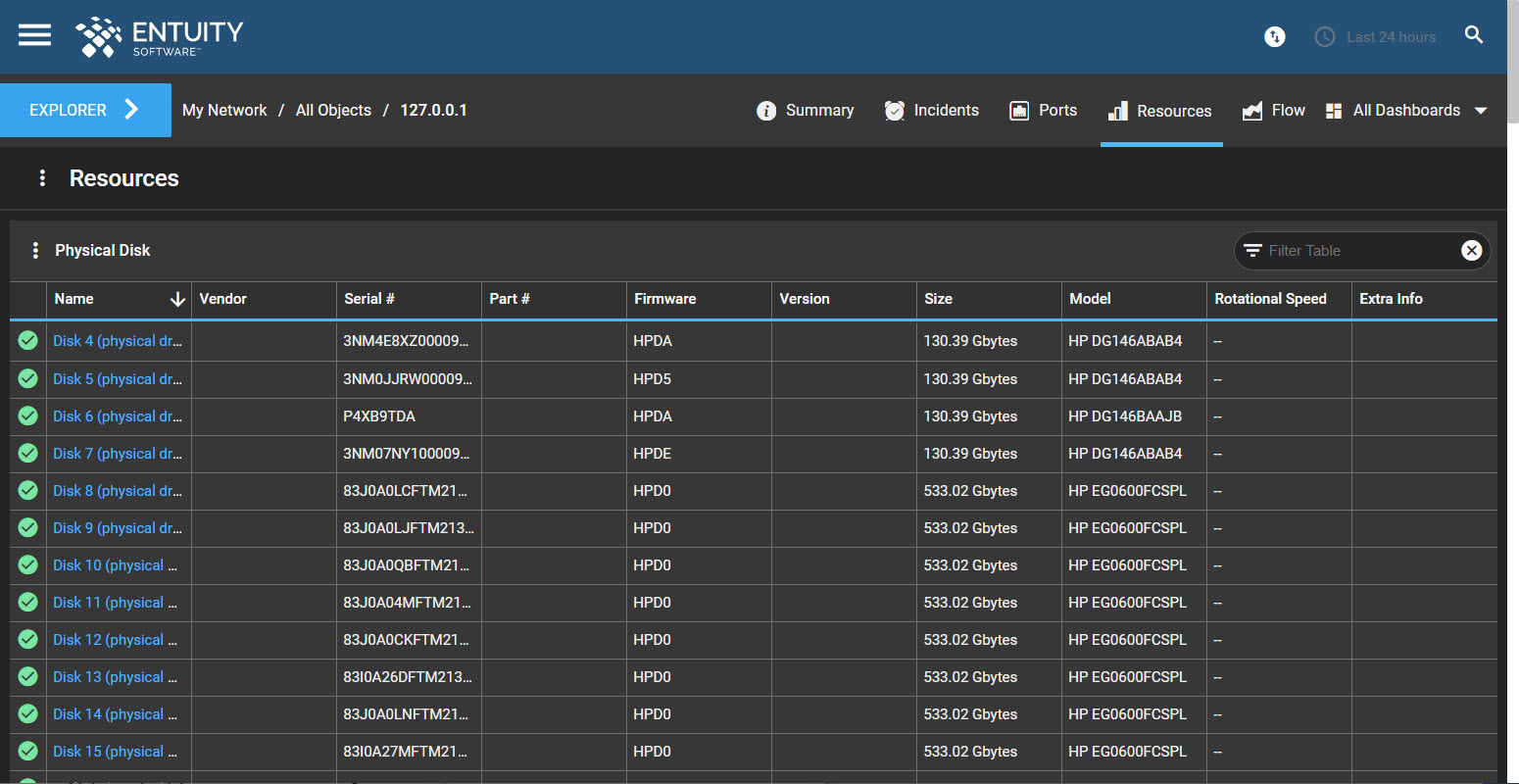

Resources dashboard:

The Resources dashboard for a server device contains Table dashlets for each of the following resources:

• Physical Disk
• Processor
• Memory
• Power Supply
• Sensor
• Fan
• IO Module
• DPE (from Entuity v21.0 upwards)
• Logical Disk
• Battery
• Storage Processors (from Entuity v21.0 upwards)
• Other

Reports:

You can also see details of servers in the following Inventory reports:

• Device Inventory report
• Device Types report
• Inventory Change report
• Inventory Overview report
• Manufacturers report
• Models report
