MPLS LDP Summary report

Avatar
Stuart Hill
  • Updated
Follow

To run a MPLS LDP Summary report



The MPLS LDP Summary report provides an inventory of routers running MPLS Label Distribution Protocol. You can configure the parameters of the report to focus on the components that you are most interested in.



MPLS LDP Summary report details:

Name Description
Device Name name of the device.
LSR ID Label Switching Router (LSR) identifier is the first 4 bytes of the Label Distribution Protocol (LDP) identifier.
Loop detection capability

indicates the LSR loop detection capability, and not necessarily its current state. Loop detection is determined during session initialization, individual sessions may not run with loop detection. Loop detection can be:

  • None, loop detection is not supported on this LSR.
  • Other, loop detection is supported but by a method other than those explicitly defined in the MIB.
  • Hop Count, loop detection is supported only through hop count.
  • Path Vector, loop detection is supported only through path vector.
  • Hop Count And Path Vector, loop detection is supported by both hop count and path vector.
Lable retention mode

Label Retention Mode. When set to:

  • Conservative, the advertised label mappings are retained only if they will be used to forward packets, i.e. if label came from a valid next hop.
  • Liberal, all advertised label mappings are retained whether they are from a valid next hop or not.
LDP session traps enabled

LDP Session Traps Enabled, when set to:

  • Enabled, the mplsLdpSessionUp and mplsLdpSessionDown can be generated.
  • Disabled, the mplsLdpSessionUp and mplsLdpSessionDown can not be generated. The default is Disabled.
LDP Peers number of LDP peers.





To run a MPLS LDP Peer Performance report:

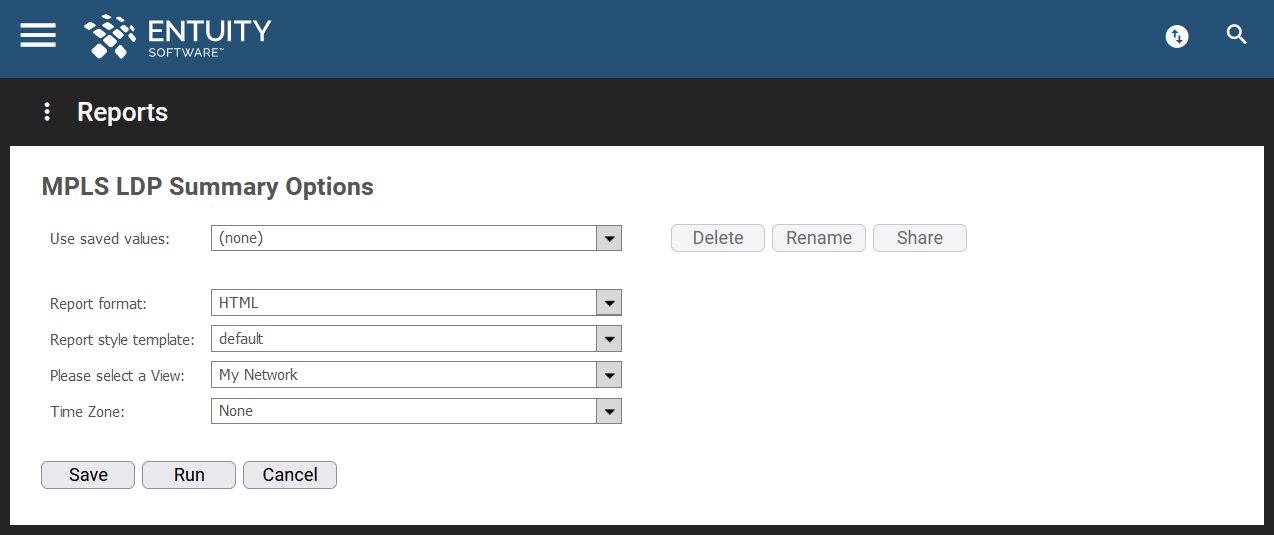

mpls ldp summary 2.png

  1. In the Main Menu, click Reports.
  2. This will open the Reports page. Click Connectivity and Routing.
  3. This will open the Connectivity and Routing page. Click MPLS LDP Peer Performance.
  4. This will open the MPLS LDP Peer Performance Options page.
  5. If you want to reuse previously saved report values, select it in the Use saved values dropdown field.
  6. Specify the format of the report in the Report format field.
  7. Specify the Report style template you want to use for the report from the dropdown field. Please see this article for help and information on reporting style templates.
  8. Specify the View against which the report is to be run in the Please select a View dropdown field. You can drag Views into this field from the Drop Box.
  9. Specify the time zone to which you want the reporting period to apply. By default, this is set to None, which means that the time zone of the host/consolidation server is used.
  10. Click Save to save your report values, Run to run immediately, or click Cancel.
